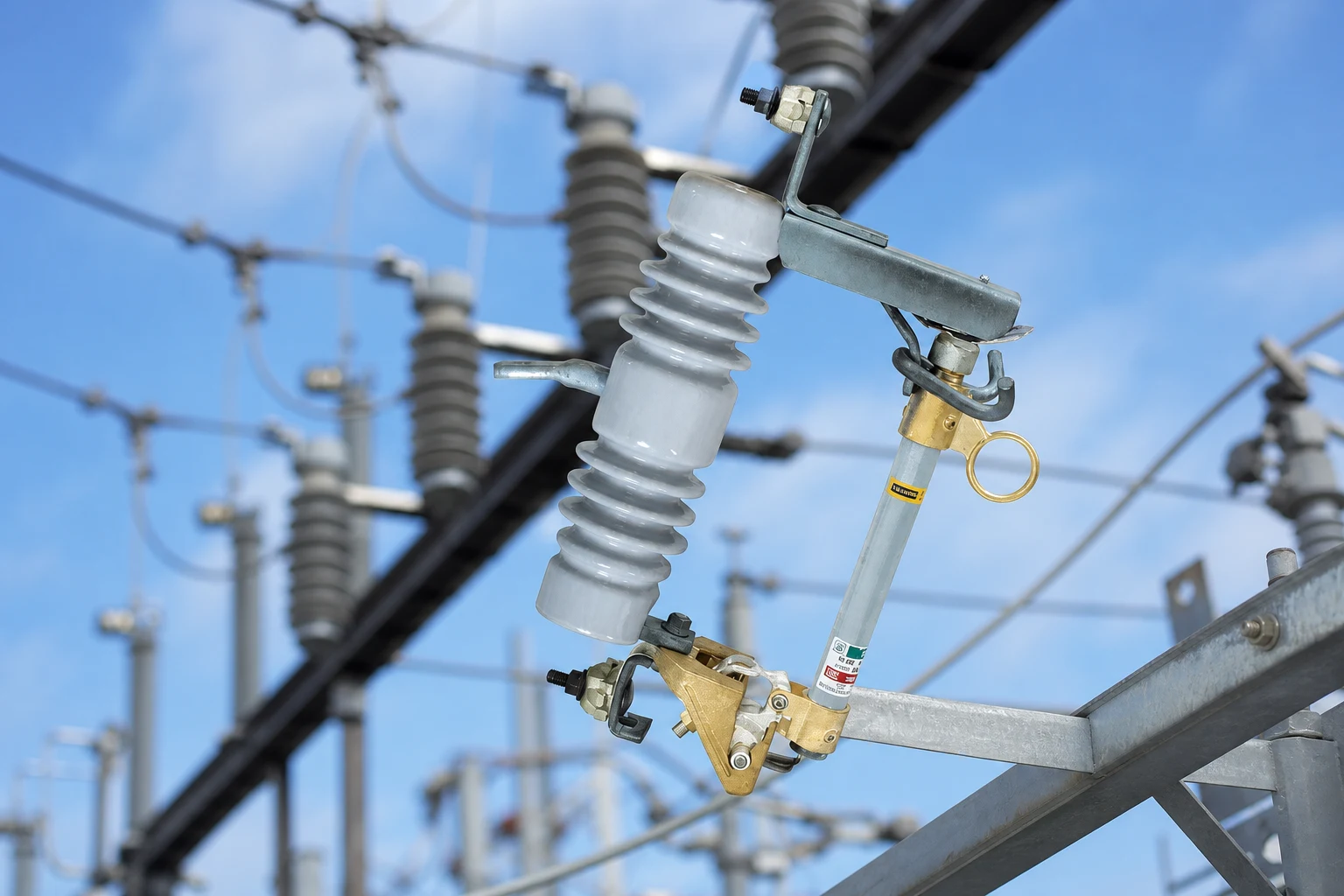

Buyers comparing a dropout fuse cutout with a loadbreak device often start from the same pole hardware photograph. Both may appear on medium-voltage overhead lines, both use an expulsion fuse link in many designs, and both can show a open gap after fuse operation. The specification question is different: whether the device is intended only for fault protection with visible dropout indication, or whether it is rated and documented for defined load-make and load-break switching under owner procedures.
Treat the two classes separately in RFQs and drawing notes. This page compares buyer-facing boundaries. Operating sequence, rating matrices, and fuse-link coordination live in the linked FUERTE cluster articles.
Contents
- Why do buyers confuse dropout and loadbreak cutouts?
- How do switching duty expectations differ?
- What does visible isolation mean in each design?
- How does fuse handling change the maintenance workflow?
- Which specification lines belong in an overhead MV RFQ?
- When is a dropout cutout the practical choice?
- When must loadbreak duty be verified, and what is FSC-1-1?
Part 1. Why do buyers confuse dropout and loadbreak cutouts?
Catalog language overlaps. A dropout expulsion cutout drops its fuse tube after link operation to show a visible open. A loadbreak cutout or fuse-switch device may also use a hinged tube or blade arrangement, which makes the silhouettes look similar in marketing photos.
The functional difference is switching duty and the evidence behind it. Distribution cutout standards such as IEEE C37.41 frame cutout applications and ratings in ways that do not let buyers infer loadbreak performance from the word “drop-out” alone. IEEE C37.42 addresses related fuse and disconnect switching applications in a separate context.
| Common buyer assumption | Why it fails | Safer question |
|---|---|---|
| “Drop-out means loadbreak.” | Drop-out describes tube motion after fuse operation, not necessarily rated load switching | Does the owner require load-make/load-break duty with published evidence? |
| “If the tube is down, I can work the line.” | Line-side parts may remain energized | What isolation document governs work on this structure? |
| “Any 15 kV cutout fits my spec.” | Voltage label does not define switching class or link family | Which device class and catalog cut are approved? |
| “Cheaper dropout can replace loadbreak.” | Operating procedures, clearances, and tests differ | Is substitution allowed by the owner specification? |
Browse the fuse cutout range as a family list, then verify the exact catalog page for the duty you need.
Part 2. How do switching duty expectations differ?
A dropout expulsion cutout is primarily a protection device. It carries load current during service, opens when the fuse link responds to an overload or fault, and drops the tube to mark the operated state.
A loadbreak fuse cutout — or a similarly named loadbreak switching device — is requested when the owner expects intentional opening and closing under load within defined limits, procedures, and test evidence. That duty is not automatic for every dropout design.
| Duty topic | Dropout expulsion cutout (typical buyer expectation) | Loadbreak cutout (must be verified on exact catalog page) |
|---|---|---|
| Normal load current | Yes, through approved fuse link | Yes, when published for the model |
| Fault/overload opening | Yes, via fuse link operation | Yes, via fuse link or combined switch mechanism per design |
| Intentional load opening/closing | Not assumed | Must be stated, with evidence, on the product documentation |
| Outage planning | Fuse replacement and tube handling | Often adds switching steps, interlocks, or tools |
| Quotation comparison | Compare protection ratings and visible dropout features | Compare published switching duty, not silhouette |
Do not translate this table into a universal performance guarantee for every manufacturer series. It is a specification checklist only.
Part 3. What does visible isolation mean in each design?
Visible isolation is one of the main reasons utilities specify dropout cutouts on transformer taps and laterals. After the fuse operates, the tube swings away from the contacts and crews can see that the device has opened.
Visible does not automatically mean isolated for employee work rules. The line-side conductor and upper contact may remain energized unless the owner procedure covers grounding, visible open points, and downstream de-energization.
The cluster article on fuse cutout operating sequence explains how expulsion and tube motion relate to fault clearing. Use it for sequence context; use the owner isolation standard for work authorization.
| Observation in the field | What it reliably shows | What still requires procedure |
|---|---|---|
| Tube dropped after fault | Fuse likely operated; device not in normal closed service | Whether conductors are grounded and safe to touch |
| New link installed and tube up | Mechanical reassembly complete | Whether downstream faults were cleared before re-energizing |
| Loadbreak handle in open position | Switch intent per that device class | Whether the published duty covers the actual switching task |
Important: Visible open is an aid to patrol and troubleshooting, not a substitute for the owner’s isolation and grounding rules; source context: IEEE C37.41.
Part 4. How does fuse handling change the maintenance workflow?
Both device classes rely on correct fuse link selection, but the outage workflow differs once load switching enters the scope. Dropout cutouts most often enter maintenance when the link has operated or when the owner schedules link replacement during a planned outage.
Loadbreak designs may be operated more often under switching programs. That can change training, tooling, interlocks, and the spare-parts list even when the visible hardware looks similar.
| Workflow step | Dropout cutout emphasis | Loadbreak cutout emphasis |
|---|---|---|
| Outage request | After operation or planned replacement | May include scheduled load transfers |
| Link removal/replace | Tube handling, link type per owner spec | Same link discipline plus switching steps if applicable |
| Proof of device class | Visible dropout after operation | Published loadbreak duty and operating instructions |
| Spares | Links, tubes, contacts as approved | May add switching parts or specialized hardware |
| Documentation | Fuse link record | Switching logs and duty evidence |
Link type and sizing belong in the expulsion fuse link selection guide. This article mentions links only where handling differs by device class.
Part 5. Which specification lines belong in an overhead MV RFQ?
An RFQ that says only “15 kV cutout” invites mismatched quotations. Add explicit device-class language and the duty evidence you expect back from the supplier.
| RFQ line | Example buyer language | Why suppliers need it |
|---|---|---|
| Device class | “Dropout expulsion cutout” or “Loadbreak cutout with published switching duty” | Prevents silent substitution |
| System voltage and current | 12–15 kV, 100 A continuous, etc. | Anchors electrical table |
| Switching duty | “Fault protection only” or “Load-make/load-break per attached owner clause” | Separates this comparison from ratings-only specs |
| Isolation reference | Owner construction standard or utility spec number | Defines visible open vs work clearance |
| Fuse link requirement | “Per owner link specification; supplier to confirm compatibility” | Avoids link-family mismatch |
| Mounting and conductor | Bracket type, conductor size, orientation | Mechanical acceptance |
| Standard | IEC 60282-2 or owner-named equivalent where applicable | Documentation alignment |
| Required submittals | Drawings, data sheet, switching-duty evidence if claimed | Makes quotations testable |
Electrical rating inputs such as impulse levels and creepage are organized in the cutout ratings and selection article. Attach those inputs together with the device-class lines above.
Part 6. When is a dropout cutout the practical choice?
Dropout expulsion cutouts remain the common choice where the owner needs economical fault protection, a visible operated state, and straightforward fuse replacement during authorized outages. Typical applications include transformer taps, capacitor connections, and lateral protections on overhead medium-voltage distribution lines — always subject to the owner design standard.
Choose dropout when the specification does not require published loadbreak switching duty for routine transfer operations. If operators must switch load with the cutout itself, move the requirement to the loadbreak class and demand catalog evidence.
| Project signal | Dropout likely sufficient if… | Escalate to verified loadbreak if… |
|---|---|---|
| Operating procedure | Owner only needs fault protection and visible operation indication | Owner names load-transfer switching at the cutout |
| Quotation review | Supplier quotes “drop-out expulsion cutout” with matching ratings | Supplier cannot produce switching-duty evidence |
| Spares strategy | Fuse links and tubes dominate | Switching components and interlocks are specified |
| Training | Fuse replacement and patrol | Switching under load with defined steps |
Part 7. When must loadbreak duty be verified, and what is FSC-1-1?
If the owner specification names loadbreak switching, the buyer must verify the exact catalog page that publishes that duty, including drawings, operating instructions, and any type-test reference the owner accepts. Do not infer loadbreak capability from a dropout product name, a similar photo, or an unverified series label.

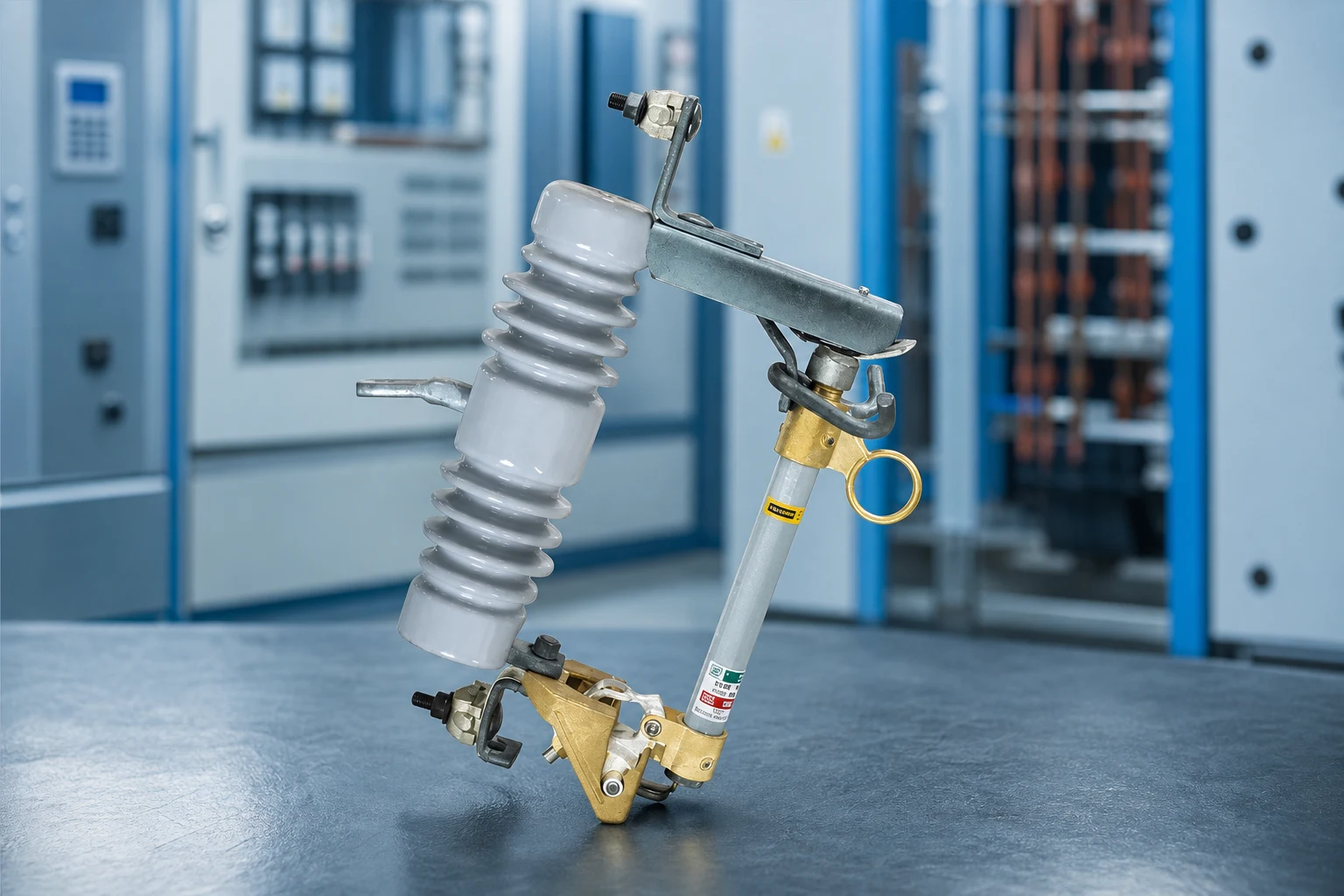

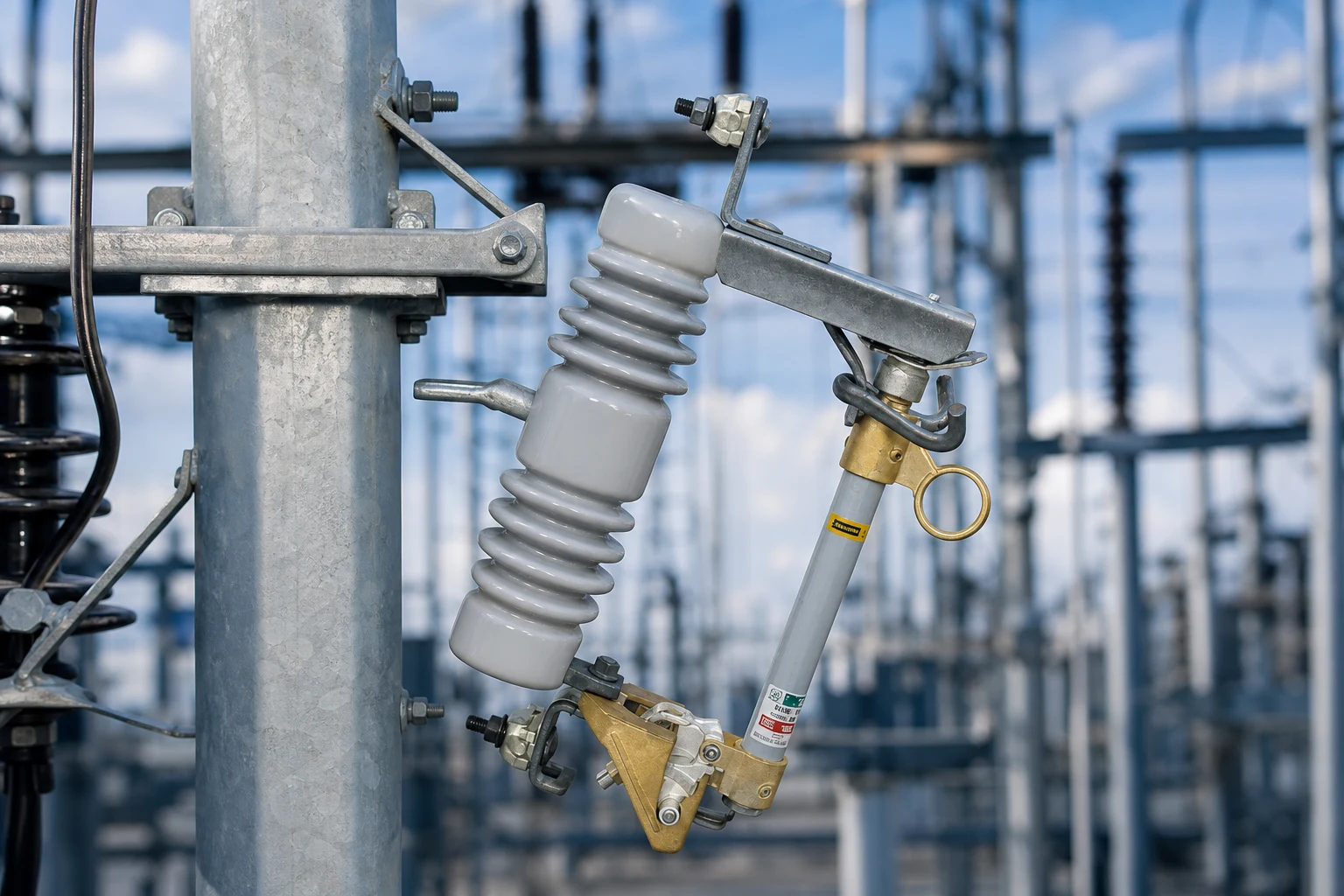

FUERTE publishes the FSC-1-1 Drop Out Fuse Cutout as a drop-out expulsion device for 10–15 kV overhead applications with published 100/200/300 A options and IEC 60282-2 cited on that page. That record supports a dropout example only. It does not, on the reviewed public page, establish loadbreak switching duty for FSC-1-1 or for the wider FSC series.
Before accepting any quotation, confirm:
- Device class matches the RFQ wording.
- Published voltage, current, and creepage match the route study.
- Fuse link family is compatible with the owner specification.
- Any claimed loadbreak duty appears on the exact product documentation for the quoted catalog number.
- Spares and mounting hardware match the structure drawing.
Send the verified input set through request a quote when a dropout device such as FSC-1-1 fits the published specification.
Fit boundary
This comparison article does not certify a supplier switching rating, approve substitution between device classes, or interpret owner isolation rules. FSC-1-1 is referenced only as a published dropout example. Projects requiring loadbreak duty must confirm a product page that explicitly publishes that capability.
FAQ
What is the difference between dropout and loadbreak fuse cutouts?
Dropout expulsion cutouts protect against faults and drop the tube for visible indication after fuse operation. Loadbreak cutouts must be verified separately when the owner requires intentional load switching under published duty and procedures.
Can a dropout fuse cutout switch load?
Do not assume so. A dropout device is specified primarily for fault protection and visible operation indication. Load switching requires explicit duty evidence on the exact product documentation.
Does a dropped fuse tube mean the line is de-energized?
Not necessarily. The tube shows the device operated, but line-side parts may remain energized. Follow the owner isolation, grounding, and work rules.
When is loadbreak capability required on an overhead line?
When the owner specification or operating procedure requires intentional load-make and load-break at the cutout with documented evidence. That is a project decision, not a default for every MV line.
How does fuse handling differ between the two types?
Both require correct fuse links, but loadbreak programs may add switching steps, tooling, and records beyond simple link replacement after fault operation.
What specification language should appear in an MV cutout RFQ?
State device class, voltage and current, switching-duty requirement, isolation reference, fuse-link rule, mounting detail, standard, and required submittals.
Are dropout and loadbreak cutouts interchangeable?
Only if the owner explicitly allows substitution and the supplier provides matching evidence. Otherwise treat them as separate device classes in procurement.
What should buyers verify before accepting a supplier quotation?
Verify device class, published ratings, fuse-link compatibility, mounting interface, and any claimed loadbreak duty on the exact catalog page quoted — not from a look-alike photo.
