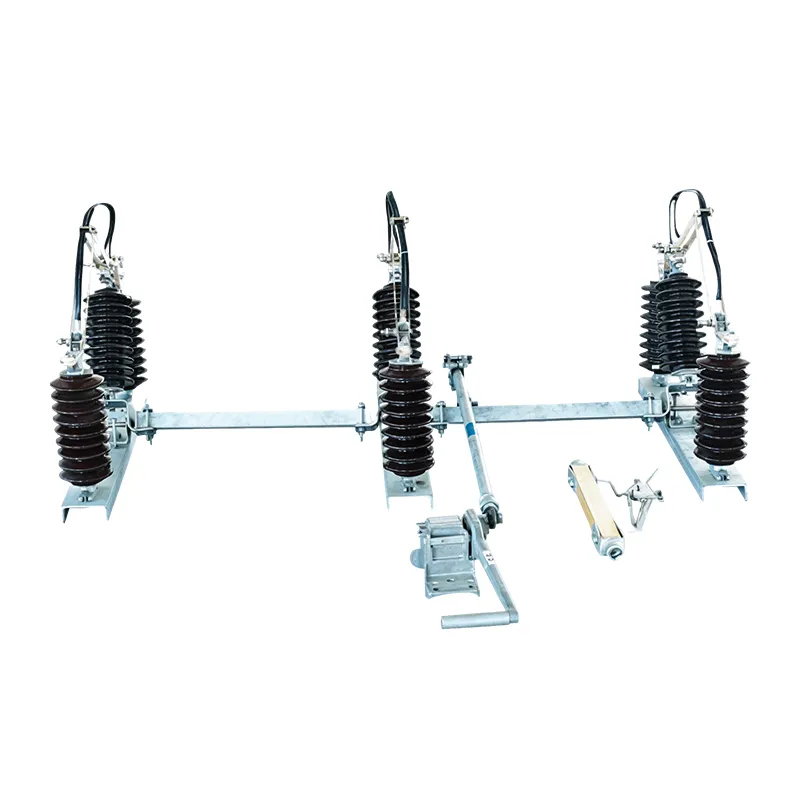

RH-B Isolating Switch

Disconnect switch / isolating switch is divided into single-pole and three-pole type, porcelain,polymer and resin type,standard and loadbreak type, which used for outdoor alternative current distribution electric system. For rated frequency 50Hz. Technical Standard:IEC60694, IEC62271-102 latest standard

Request a Quote

Overview

Medium-voltage isolating switch

RH-B Isolating Switch for Medium-Voltage Distribution Isolation

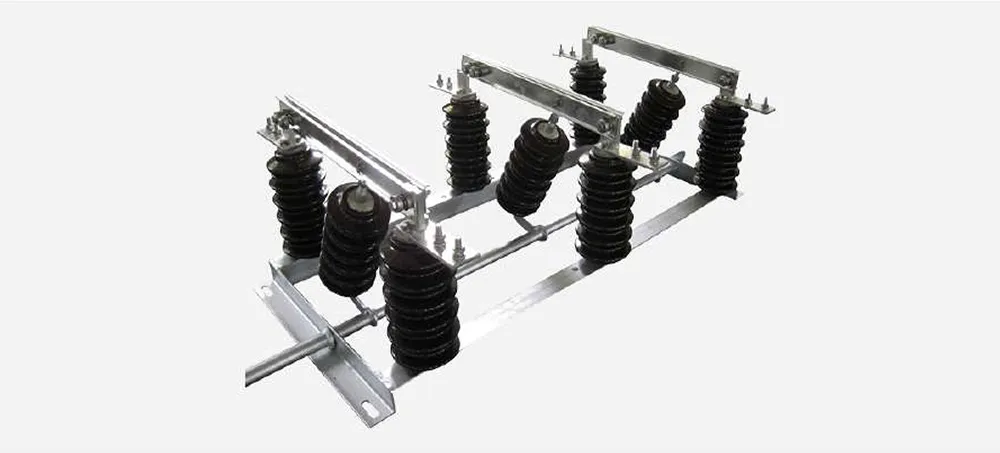

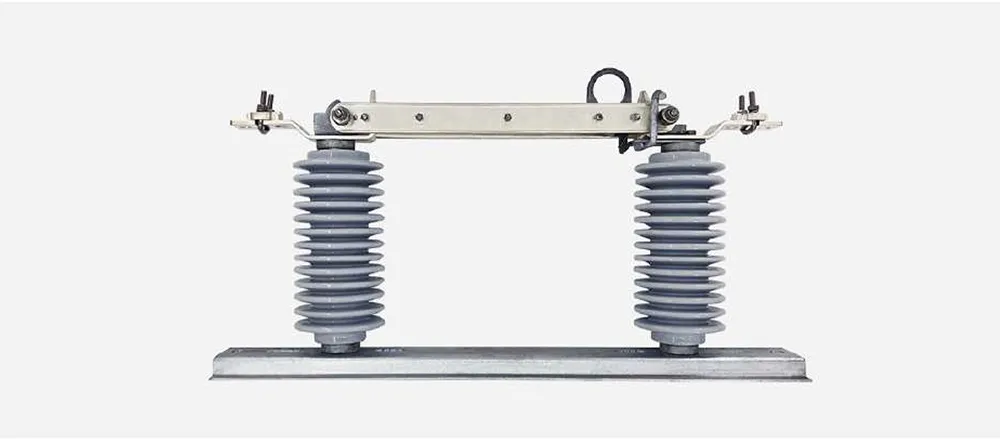

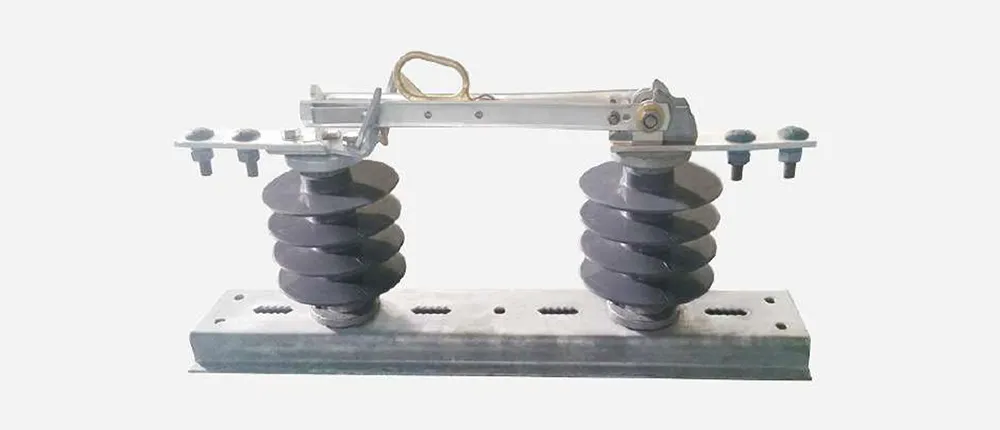

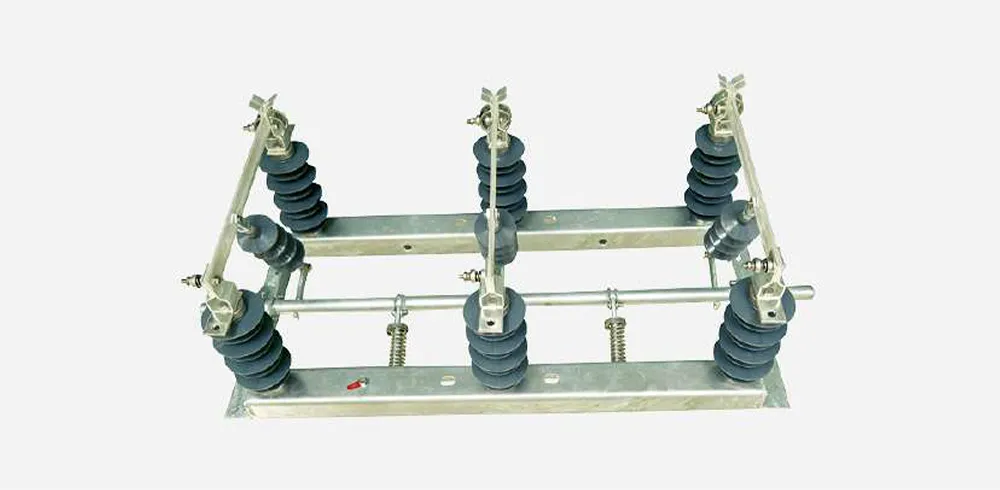

RH-B is an isolating-switch family with three-pole and single-pole configurations. The supplier tables list 11–36 kV ratings, up to 630 A for RH-B and up to 1,250 A for the GW three-pole variant, plus 15–36 kV single-pole options.

Rated voltage: 11–36 kV
Rated current: 630 / 1250 A
Short-circuit withstand: 12.5–20 kA
Impulse withstand: 95–195 kV

The RH-B source page does not publish a standard edition; confirm the applicable standard, test documents and project acceptance scope before ordering.

Request a configuration review Browse isolating switches

Published technical data

RH-B Isolating Switch Technical Parameters

The source publishes separate three-pole and single-pole tables. They are reproduced below so buyers can compare voltage, current, withstand and leakage-distance rows without mixing configurations.

Published table 1

Model	Rated Voltage	Rated Current Max	4s Heat Steady e.c.	Impulse Withstand Voltage	Power-frequency Withstand Voltage	Leakage Distance
kV	A	kA	kV	kV	mm
RH-B	11	630	12.5	95	42	420
RH-B	33	630	12.5	195	80	680

Published table 2

Model	Rated Voltage	Rated Current Max	4s Heat Steady e.c.	Impulse Withstand Voltage	Power-frequency Withstand Voltage	Leakage Distance
kV	A	kA	kV	kV	mm
GW	11	1250	12.5	95	42	420
33	1250	12.5	195	80	680

Published table 3

Model	Rated Voltage	Rated Current Max	Short-time Withstand Current	Peak Value Withstand Current	Impulse Withstand Voltage	Power-frequency Withstand Voltage	Leakage Distance
kV	A	kA/s	kV	kV	kV	mm
FGW11-12/630	27	630	20/2	50	125	45	510

Published table 4

Model	Rated Voltage	Rated Current Max	4s Heat Steady	Dynamic Steady Current	Impulse Withstand Voltage	Power-frequency Withstand Voltage
kV	A	kA	kA	kV	kV
GW-15	15	630	20	50	95	42
GW-27	27	630	20	50	125	65
GW-36	36	630	20	50	170	75

Published table 5

Model	Rated Voltage	Rated Current Max	4s Heat Steady	Dynamic Steady Current	Impulse Withstand Voltage	Power-frequency Withstand Voltage
kV	A	kA	kA	kV	kV
FGW10	15	630	20	50	95	42
27	630	20	50	125	65
36	630	20	50	170	75

Confirm system voltage, earthing arrangement, installation altitude, pollution level and required operating duty with the project engineer before final selection.

Selection checklist

Prepare the Isolating-Switch RFQ

Define the system voltage. State nominal system voltage, rated voltage and insulation-coordination values.
Match continuous and short-time duty. Confirm rated current, short-circuit withstand current, peak withstand current and duration.
Choose the arrangement. Identify single-pole or three-pole construction, operating mechanism and rod length where applicable.
Specify installation hardware. Confirm mounting bracket, terminal clamp, line connection, operating eye and crossarm arrangement.
List documents and quantity. Include standard edition, drawings, test evidence, packing quantity, destination and required delivery schedule for quotation.

Configuration and supply boundary

Review the RH-B Configuration

The target source lists selectable hardware and material options. State each option explicitly so the quotation reflects the intended field installation.

Electrical coordination

Confirm rated voltage, current, impulse withstand, power-frequency withstand and leakage distance against the project study.

Operating hardware

Depending on the model, specify operating mechanism, arcing-distinguishing chamber, operating rod length, loadbuster hook or self-locking mechanism.

Materials and corrosion protection

The source lists silver-plated copper terminals and blades, porcelain or polymer insulators and hot-galvanized steel bases. Confirm the selected combination.

Commercial boundary

Quantity, packaging, delivery schedule, private label and project documents remain subject to technical review and quotation.

Company scale

Fuerte at a Glance

FUERTE lists 1985 as its founding year, 220+ employees and a 36,000 m² built-up area. These supplier-published figures provide context for manufacturing and project support.

1985

Founded in

Supplier-published company history

220+

Employees

Published workforce scale

36,000 m²

Built-up area

Published manufacturing footprint

OEM

& ODM support

Subject to technical review

OEM & ODM capability

Custom Support for Isolating-Switch Projects

FUERTE’s published OEM and ODM scope includes voltage/current adaptation, mounting hardware, nameplates, packaging and shipping marks.

Electrical configurationReview rated voltage, current, withstand values and service conditions for the target market.
Hardware selectionConfirm poles, operating mechanism, rod length, brackets, terminals and corrosion-resistant materials.
Project documentationState drawings, marking, packing, shipping marks and acceptance-document requirements before quotation.

Frequently asked questions

RH-B Isolating Switch FAQ

Which voltage and current values are published?

The target table lists 11–36 kV rated-voltage options and 630 / 1250 A rated-current options. Confirm the exact configuration in the quotation.

What withstand values should be checked?

Review impulse withstand, power-frequency withstand, short-circuit withstand current and peak withstand current together with the insulation-coordination study.

Can the operating hardware be customized?

The source lists selectable mechanisms, brackets, terminals and, for some models, operating-rod length. Availability depends on technical review.

What should be included in a quote request?

State model, poles, voltage, current, withstand duty, operating hardware, mounting arrangement, quantity, destination market and required documents.

Configuration review

Send the RH-B Requirements

Provide system voltage, rated current, short-circuit duty, insulation levels, pole arrangement, operating hardware, mounting details, quantity, destination market and required documents.
