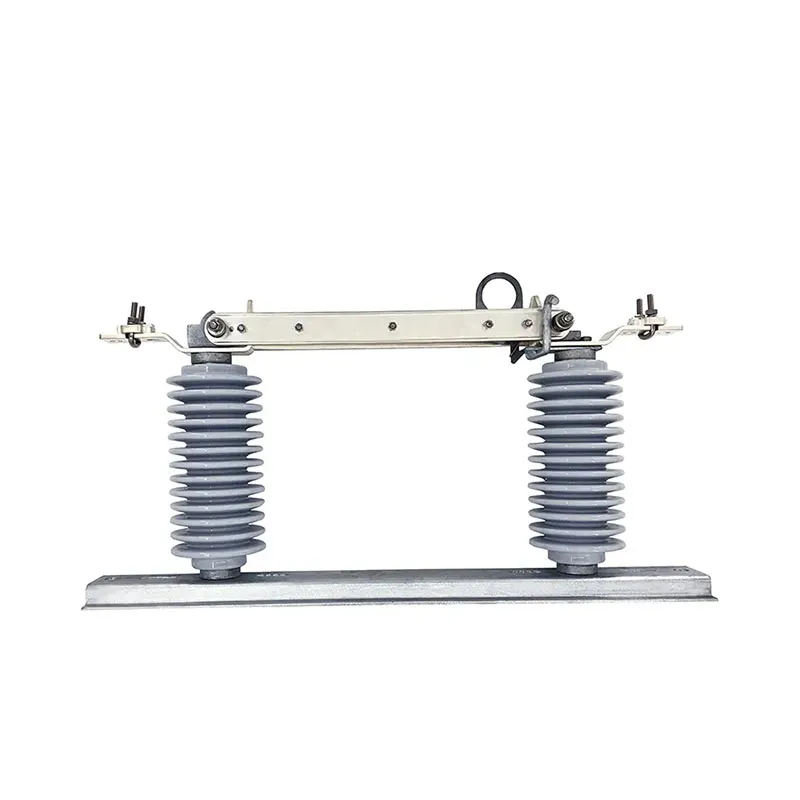

GW13-36 Isolating Switch

The disconnect switch / isolating switch with manual operation mechanism is used for sectionalizing or isolating circuits on outdoor distribution overhead systems up to 38KV.
Characteristic:
Voltage: 12 / 36kV
Current: 630A
Application: Overhead Distribution Line
Standard: IEC 62271-102

Request a Quote

Overview

Technical parameter.

Electrical characteristics	Specification		Unit
Rated voltage of Disconnector	12	36	kV
Rated current	630		A
Rated frequency	50		Hz
Lighting Impulse withstand voltage	95	170	kV
Power frequency withstand voltage in 1 min (Dry)	42	70	kV
Power frequency withstand voltage in 10 s (Wet)	36	60	kV
Rated short circuit withstand current	20		kA
Rated short circuit withstand time	3		s
Rated peak withstand current	50		kA
Creepage	25	20	mm/kV
Blade stopped degree in opening position	160		Degree

Spare parts
Mounting bracket	with/without
Terminal clamp	with/without
Loadbuster Hook	with/without
Self locking Mechanism	with

Material
Terminal pads	Brass/Copper plated by silver
Blade	Copper plated by siliver
Insulator	Porcelain / Polymer
Channel Base	Steel hot galvanized
Channel Base	Steel hot galvanized

Package
Qty/package	1		pc/carton

Service conditions
Environment maximum temperature	40		°C
Pollution level	Heavy
Altitude	≤1000		Meter

Standard	IEC 62271-102:2001
