Lightning Surge Arrester for Power Grids: Reliable Protection for Industrial Electrical Systems

Why Surge Protection Matters in Power Distribution Networks

Power distribution systems are designed to operate within defined insulation and voltage limits. However, transient overvoltages may occur when lightning strikes nearby overhead lines, when switching operations are performed in the network, or when system disturbances create temporary voltage stress. If these overvoltages exceed the insulation withstand level of connected equipment, they may cause flashover, insulation degradation, transformer damage, cable failure, or unplanned shutdowns.

A lightning surge arrester limits these dangerous voltage peaks by providing a controlled path to ground. Under normal operating voltage, the arrester remains highly resistive and allows the system to operate without interference. When a surge voltage rises above its designed protection level, the arrester rapidly changes into a conductive state and diverts surge current to ground. After the transient event passes, it returns to its normal insulating state.

Industry studies and utility reliability reports commonly identify lightning-induced overvoltages and switching surges as important contributors to insulation stress and unexpected outages in distribution networks. For this reason, surge protection should be considered not only a safety measure, but also a practical investment in equipment lifecycle management and system reliability.

In industrial applications, the cost of downtime can be far higher than the cost of protection equipment. A failed transformer, damaged switchgear unit, or interrupted production line may lead to expensive repairs, delayed delivery schedules, and safety risks. Therefore, choosing a high-quality lightning surge arrester is an important part of risk management for electrical infrastructure.

Understanding the Core Technology: Metal-Oxide Varistors

The performance of a modern gapless surge arrester depends mainly on the quality of its Metal-Oxide Varistor, commonly referred to as the MOV block. MOV technology is widely used because it provides a highly non-linear voltage-current characteristic.¹ This means the material behaves like an insulator under normal system voltage, but becomes conductive when exposed to high-voltage transients.

The primary material used in MOV blocks is high-purity zinc oxide. Small quantities of other metal oxides, such as bismuth, cobalt, manganese, or antimony, are added to modify the electrical properties of the grain boundaries formed during sintering. These microscopic grain boundaries determine the arrester’s residual voltage, leakage current, energy absorption capability, and thermal stability.

A reliable MOV block is not created by material selection alone. It depends on tightly controlled production conditions. During manufacturing, zinc oxide and additive oxides are mixed into a uniform slurry, processed into granules, pressed into cylindrical blocks, and then sintered at high temperatures. The sintering process is especially important because it forms the microstructure that gives the MOV its surge absorption performance.

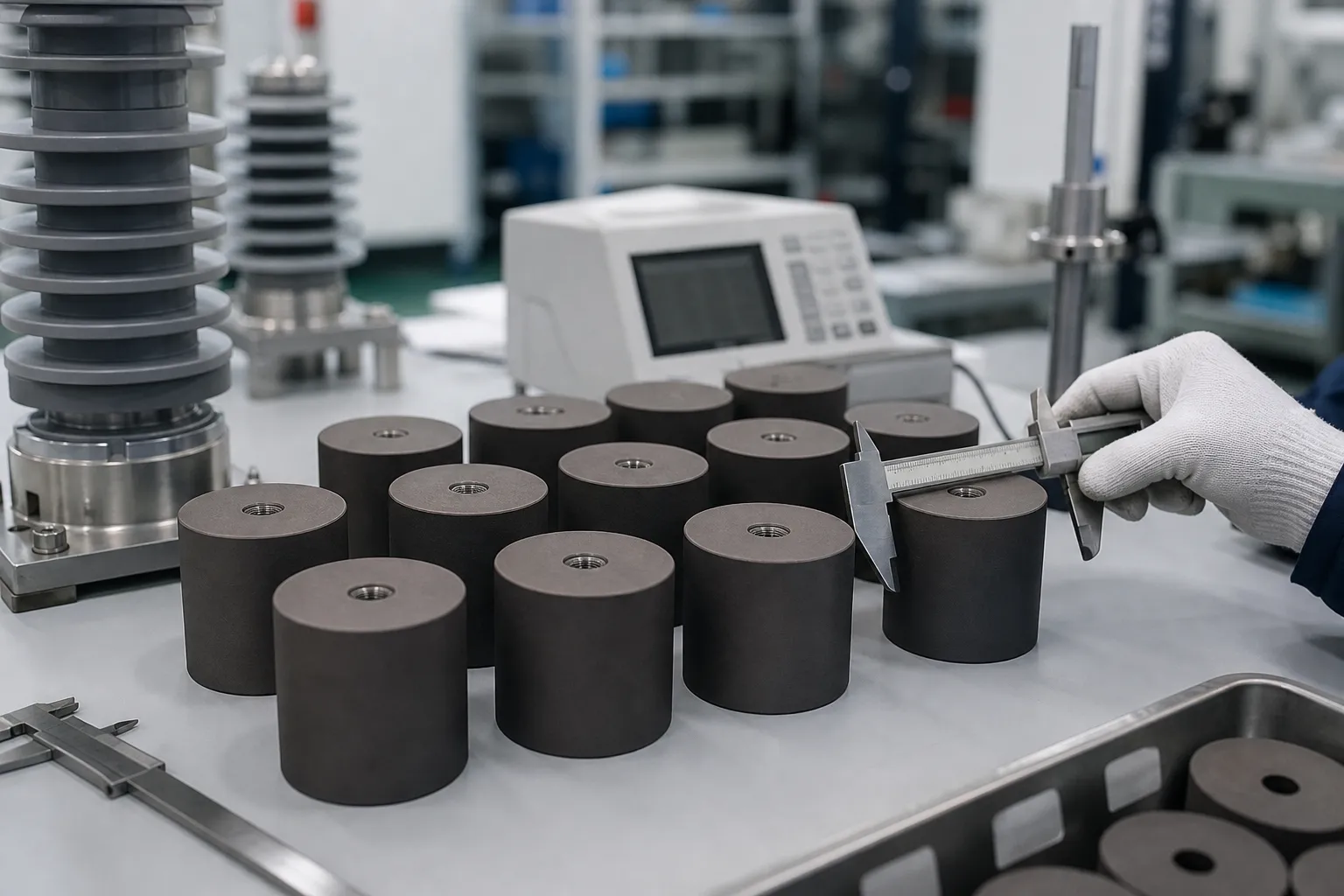

After sintering, each MOV block should be electrically screened. Reference voltage, leakage current, and energy-handling consistency are tested to ensure that only qualified blocks enter the final assembly process. This step is essential because two surge arresters that look similar from the outside may perform very differently if their MOV blocks are produced under different material controls or testing procedures.

For B2B buyers, this is an important point. External appearance, silicone housing color, or general catalog specifications are not enough to evaluate quality. The internal MOV block is the heart of the arrester. Its consistency directly affects long-term performance in the field.

From MOV Core to Polymer-Housed Surge Arrester

Once MOV blocks pass inspection, they are assembled into the arrester core according to the required rated voltage and continuous operating voltage. The number of MOV blocks, their electrical characteristics, and the mechanical structure of the core are all determined by the voltage class and application environment.

Many modern distribution surge arresters use polymer housing instead of traditional porcelain. Silicone rubber is widely preferred because it is lightweight, impact-resistant, and hydrophobic. Hydrophobicity allows water to form droplets on the surface rather than a continuous conductive film, reducing the risk of surface leakage current and flashover in humid or polluted environments.

The internal core usually requires mechanical reinforcement to withstand installation stress, wind load, vibration, and handling during transportation. Fiberglass or epoxy-based reinforcement can improve bending strength and structural stability. After the core is prepared, silicone rubber is molded or injected around it to form the external insulating housing. A well-controlled molding process helps reduce internal voids, improve bonding, and prevent moisture ingress.

Housing design also affects creepage distance, which is the path along the insulating surface between energized and grounded parts. In areas with heavy pollution, salt fog, industrial dust, or high humidity, creepage distance becomes especially important. If the external insulation is not properly designed for the service environment, surface tracking and flashover risks may increase over time.

Therefore, a reliable surge arrester must combine electrical performance, mechanical strength, and environmental resistance. Good MOV performance alone is not enough if the housing system, sealing structure, or hardware design is weak.

Quality Assurance and International Testing Standards

For engineering projects and international B2B procurement, quality assurance is one of the most important evaluation factors. A surge arrester is a protective device that may remain unnoticed for years, but it must operate instantly and reliably when a surge event occurs. This makes testing and documentation especially important.

International standards provide a framework for evaluating design and performance. IEC 60099-4 specifies requirements for metal-oxide surge arresters without gaps for AC systems. IEEE C62.11 is also widely referenced for metal-oxide surge arresters used in AC power circuits above 1 kV. These standards help buyers, engineers, and manufacturers communicate using recognized technical criteria.

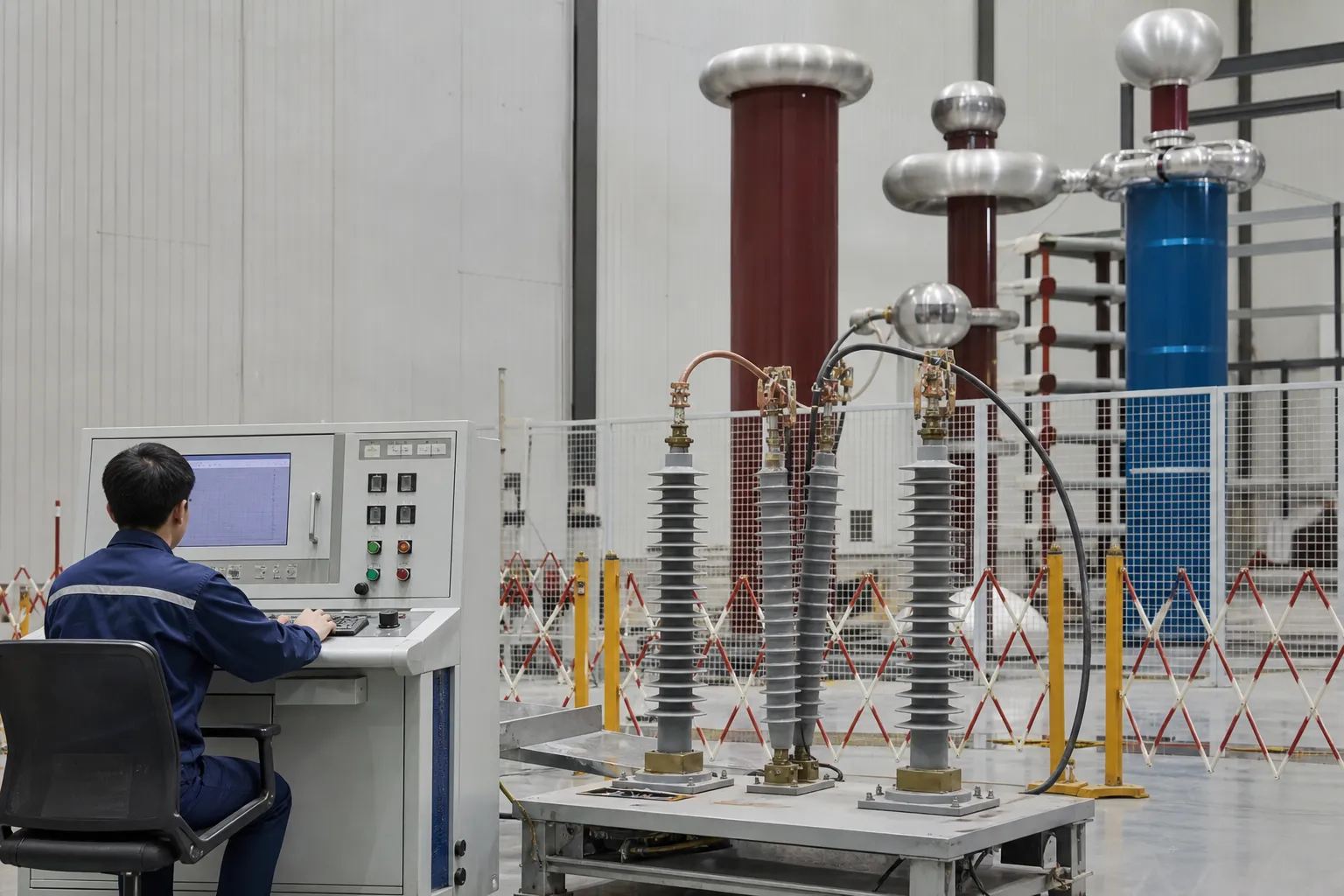

A professional quality-control system should include routine tests for each production unit and type-test documentation for the product design. Routine tests verify that every arrester leaving the factory meets essential electrical requirements. Type tests provide evidence that the design has passed more comprehensive performance evaluations under defined conditions.

When reviewing test documents, buyers should confirm that the model, voltage class, nominal discharge current, housing type, and standard reference match the product being purchased. A report for a similar product should not automatically be treated as proof for another design.

Supplier Evaluation for B2B Procurement

Selecting a surge arrester supplier involves more than comparing datasheets. Buyers should evaluate whether the manufacturer has real production capability, stable quality-control procedures, and sufficient experience supporting export projects. This is especially important for distributors, EPC contractors, and utility-related procurement, where documentation accuracy and delivery stability directly affect project execution.

A qualified supplier should be able to explain its manufacturing process clearly, provide routine test procedures, supply technical drawings, and offer relevant certificates or type-test reports. In-house production capability is also important because it gives the manufacturer better control over core assembly, silicone rubber molding, hardware installation, inspection, and packaging.

Third-party test documentation can provide additional confidence. Type-test certificates or reports from recognized laboratories such as KEMA, CESI, or Powertech help buyers verify that the product design has undergone independent evaluation. ISO 9001 certification also supports confidence in quality management, although it should be considered together with actual production and testing evidence.

For example, manufacturers such as Zhejiang Fuerte Electrical Apparatus Co., Ltd., founded in 1985, show how long-term production experience, organized workshop operations, in-house inspection conditions, and third-party test documentation can support international sourcing decisions. With a 36,000 m² manufacturing base, OEM and ODM support, and certificates including KEMA, CESI, Powertech, and ISO 9001:2015, Fuerte represents the type of manufacturing profile that B2B buyers may consider when evaluating a long-term supplier. The key is not to rely on claims alone, but to verify production capability, test records, and export support through documentation and technical communication.

Key Specifications for Selecting a Lightning Surge Arrester

A correct surge arrester selection must match the electrical system and service environment. The first parameter buyers should confirm is Continuous Operating Voltage, usually marked as Uc. This is the maximum RMS power-frequency voltage that may be applied continuously across the arrester terminals. If Uc is selected too low, the arrester may be overstressed during normal operation. If it is selected too high, the protective level may not be suitable for the insulation of connected equipment.

The second important value is Rated Voltage, commonly marked as Ur. Rated voltage indicates the temporary power-frequency voltage that the arrester can withstand for a defined short duration. The correct Ur depends on the nominal system voltage, maximum operating voltage, grounding method, and possible temporary overvoltage conditions. Systems with different grounding methods may require different arrester ratings even when the nominal voltage appears similar.

Nominal discharge current is another key specification. It indicates the arrester’s ability to withstand standardized lightning impulse current, usually represented by an 8/20 μs waveform. A 10kA arrester is commonly used in standard distribution networks and general industrial systems. A 20kA arrester is more suitable for heavy-duty applications, high lightning exposure regions, critical substations, and systems where a higher safety margin is required. The choice should be based on the electrical environment and system importance, not only on price.

Creepage distance should also be carefully reviewed. In clean inland areas, standard creepage distance may be sufficient. In coastal regions, heavy industrial zones, desert environments, or polluted areas, extended creepage distance may be necessary. IEC TS 60815 provides guidance for selecting and dimensioning high-voltage insulators used in polluted conditions. Buyers should confirm whether the manufacturer can provide suitable housing designs for different pollution levels and service conditions.

Mechanical design is equally important. Outdoor arresters must withstand wind, vibration, installation force, temperature variation, and transportation stress. Terminal strength, bending moment rating, mounting bracket compatibility, and disconnector design should be checked before bulk procurement or project approval.

OEM and ODM Support for Global Projects

Many international buyers require more than standard catalog products. Electrical distributors may need private-label nameplates and customized packaging. EPC contractors may require special drawings, project documentation, or mounting accessories. Utility projects may specify housing color, creepage distance, surge counters, insulating bases, or ground lead disconnectors.

A capable OEM and ODM supplier should be able to adapt the product within technically verified limits. Customization should never compromise electrical safety or standard compliance. For example, changing creepage distance or housing design may require confirmation that the product still meets insulation and mechanical requirements. Similarly, customized nameplates should accurately reflect voltage rating, discharge current, standard reference, production date, and manufacturer traceability.

For global projects, clear communication before quotation is essential. Buyers should provide system voltage, maximum operating voltage, installation altitude, pollution level, ambient temperature range, required standards, accessory requirements, packaging method, and project documentation needs. This helps the manufacturer recommend the correct arrester and avoid mismatches during delivery or installation.

Common Buyer Questions

Conclusion: Making a Reliable Procurement Decision

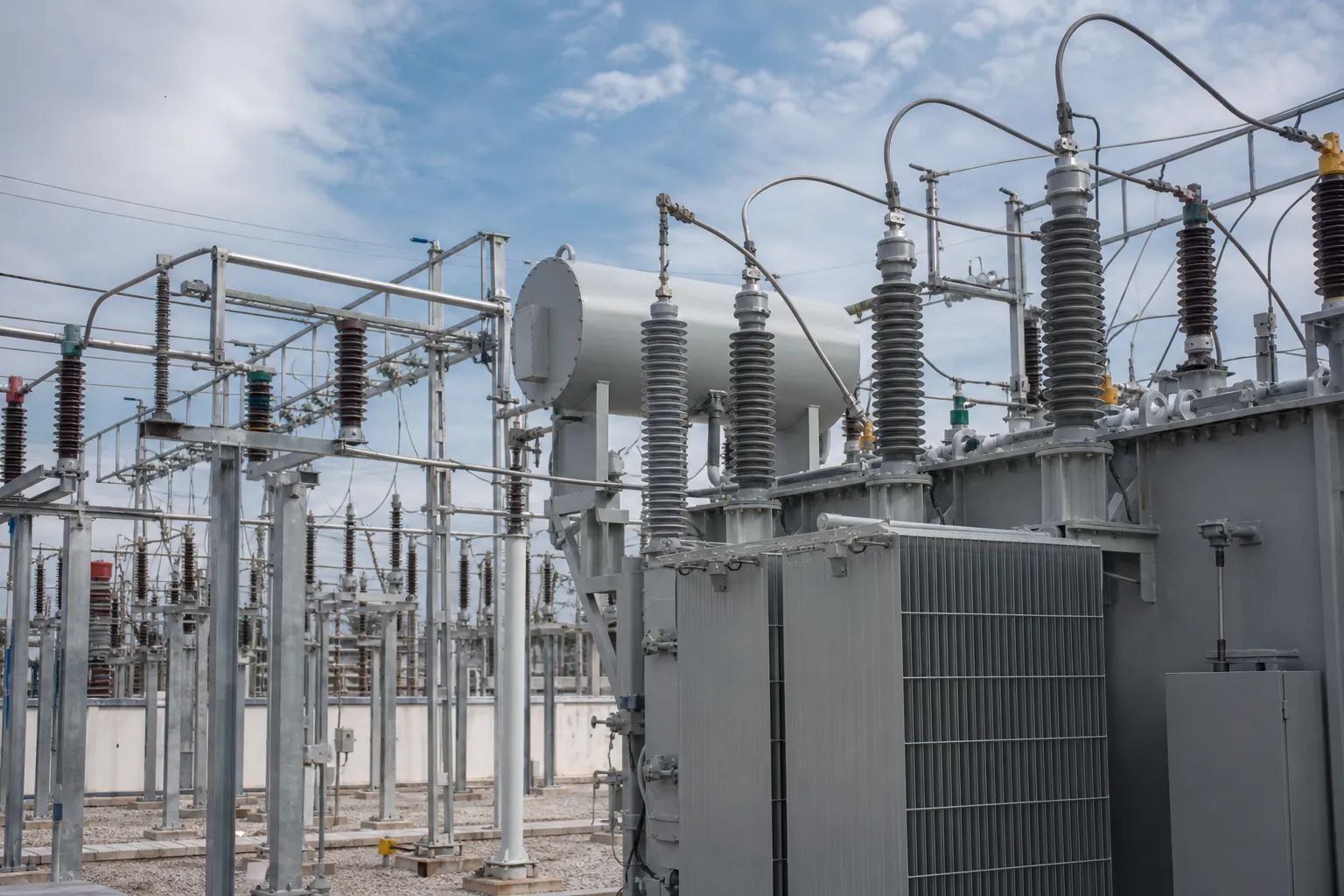

A lightning surge arrester is a relatively small component in a power distribution system, but its protection function is essential. When properly selected and manufactured, it helps protect transformers, switchgear, overhead lines, cables, and industrial electrical equipment from damaging transient overvoltages.

For B2B buyers, a reliable procurement decision should be based on technical verification rather than price comparison alone. MOV quality, polymer housing design, creepage distance, discharge current rating, IEC and IEEE standard compliance, routine testing, third-party documentation, and supplier manufacturing capability all need to be considered together.

As power distribution networks face increasing environmental and operational stress, working with an experienced manufacturer that provides transparent documentation, stable production, and professional export support can help reduce procurement risk and improve long-term system reliability.
