A fuse cut out 20 kv selection starts with documented system voltage, BIL, continuous current, fault-level basis, fuse-link class, and mounting context—inputs that must be written before treating 15 kV or 27 kV guides as interchangeable substitutes. Use it to capture 20 kV system inputs before neighbor-class substitution. It is a checklist for procurement and engineering teams — not sizing or approval for fuse-cutout-20kv-selection-inputs.
Part 1. Why 20 kV Cutout Language Needs Its Own Input Pack
Utilities and EPCs often keep strong 15 kV and 27 kV fuse cutout guides. A fuse cut out 20 kv request can drift into copying those pages without checking whether insulation level, continuous current, and fault basis match. Treat 20 kV as its own input package so commercial replies map to the actual system.
Readers searching for fuse cut out 20 kv usually need a project checklist, not a catalog slogan.
Neighbor 15 kV and 27 kV guides share process, not automatic interchangeability of ratings.
Part 2. Electrical Inputs That Must Be Sourced
Write system voltage, BIL, continuous current, and available fault level with drawing or study references. Add fuse-link class expectations and whether loadbreak or linkbreak functions are claimed. Numbers without sources should be rejected in RFQ review because suppliers cannot verify boundaries.
| Input | Source | Reject when |
|---|---|---|
| System voltage | Drawing / utility standard | Copied from 15/27 kV page only |
| BIL | Insulation schedule | Missing reference |
| Continuous current | Design basis note | Estimate without source |
| Fault level | Study or utility figure | Slogan-only fault talk |
| Fuse link | Class/speed expectation | Silent link scope |
Part 3. Mounting, Phase Arrangement, and Indication Notes
Record structure type, bracket expectations, phase count, and whether dropout indication is required. These notes prevent treating a single product photo as a complete installation kit. Neighbor-class pages may share process questions, but they do not authorize automatic rating transfer.
Important: A fuse cut out 20 kv label does not justify copying 15 kV or 27 kV ratings. Capture sourced system inputs before comparing products. (Source: IEEE/IEC distribution cutout overview practice; project studies.)
Part 4. Using 15 kV and 27 kV Siblings Without Substitution
Open those guides for shared selection process and voltage-class discipline. Keep this page focused on 20 kV input capture between those neighbors. Ratings matrices and expulsion-link deep dives stay on their respective siblings.
| Neighbor guide | Reuse | Do not transfer |
|---|---|---|
| 15 kV selection | Process questions | Automatic rating equality |
| 27 kV selection | Voltage-class discipline | Automatic uprating claims |
| Ratings & selection | General rating vocabulary | Wrong system class assumptions |
| Expulsion link guide | Link selection questions | Cutout model identity skipped |
Part 5. Documents That Make 20 kV Offers Comparable
Require exact model identity, datasheets, mounting scope, and fuse-link inclusion notes. Price-only replies that omit model identity are incomplete. Align inclusions so three quotes can be scored against the same input table.
Keep a one-page input table with sources attached to every 20 kV cutout inquiry before price comparison begins.
Related reading: 15kV fuse cutout selection; 27kV fuse cutout selection; fuse cutout ratings and selection.
Part 6. FUERTE Routes After the Input Table Is Complete
Bring the documented 20 kV system inputs, then discuss porcelain or polymer fuse cutout routes. Product recommendation here is an inquiry path, not a claim that a catalog label equals project approval for 20 kV service.
| Signal | FUERTE route | Attach |
|---|---|---|

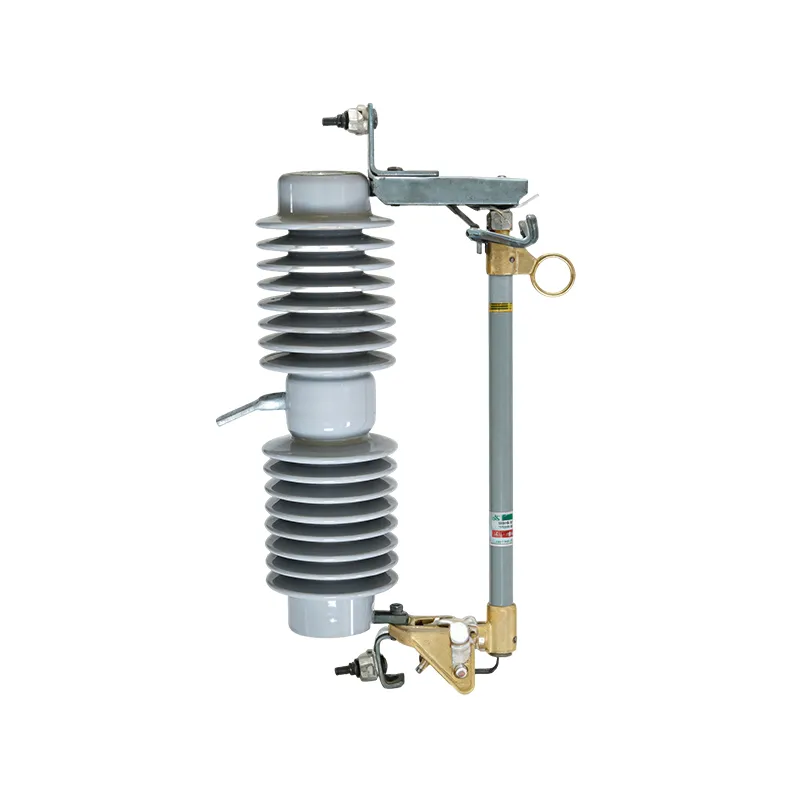

| Porcelain cutout inquiry | FSC Porcelain Type Fuse Cutout | Full 20 kV input table |
| Polymer housing preference | HFSC Polymer Type Fuse Cutout | Pollution notes + same inputs |
| Dropout indication required | FSC-1-1 discussion | Indication + link class |

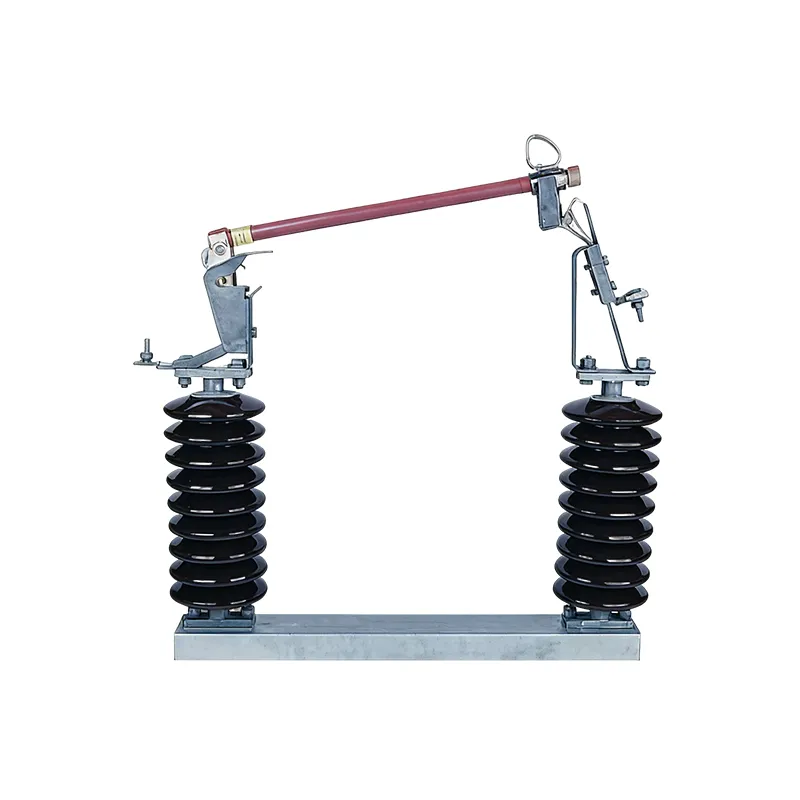

- FSC Porcelain Type Standard and Loadbreak Fuse Cutout — porcelain cutout route after 20 kV system inputs are documented.
- HFSC Polymer Type Fuse Cutout — polymer route when housing notes accompany the same inputs.
Use the FUERTE Fuse Cutout path with the 20 kV input pack attached, or contact FUERTE for a scoped offer.
Part 7. Fit Boundaries
Treat this article as a system-input guide for fuse cut out 20 kv selection language. It does not publish interrupting ratings, certify products, or replace coordination studies.
FAQ
Why not just use the 15 kV or 27 kV cutout guide?
Those guides help process, but 20 kV still needs its own sourced system inputs before model comparison.
Which inputs are mandatory?
Voltage, BIL, continuous current, fault-level basis, fuse-link expectations, and mounting notes.
Can I transfer interrupting ratings from a neighbor class page?
No. Require verified data for the offered model against the documented system.
Do fuse links need a separate RFQ line?
State inclusion/exclusion explicitly so quotes stay comparable.
What mounting details matter?
Structure, brackets, phase arrangement, and indication expectations.
How should documents be requested?
Exact model ID, datasheets, and scope list for hardware and links.
Where do expulsion fuse link details live?
On the expulsion fuse link selection sibling; link it rather than reprinting.
Does this page approve a 20 kV cutout?
No. Approval requires project documents and verified manufacturer evidence.
