As electric utilities and EPC contractors rapidly expand grid infrastructure, vacuum circuit breakers (VCBs) have become essential in modern medium-voltage electrical supply systems. Proper VCB installation is critical when upgrading substations or building new power distribution networks.The electricity sector is investing heavily in worldwide grid improvements. Modern EPC project delivery requires high equipment quality, reliable post-installation performance, and standardized commissioning for new equipment. Most field execution delays are caused by installation deviations, wiring inconsistencies, and improper protection coordination, rather than product defects.
Market Demand and Application Scenarios of Vacuum Circuit Breakers
Vacuum circuit breakers are widely used in medium voltage applications due to their compact design, high durability, and long operational lifespan.
Application Scenarios
| Application Field | Voltage Level | Typical Use Case | Key Requirement |
|---|---|---|---|
| Distribution Substation | 3.3–36 kV | Urban power distribution | Stable switching performance |
| Industrial Manufacturing | 6–24 kV | Motor protection systems | High switching frequency |
| Renewable Energy Plants | 10–35 kV | Solar and wind integration | Load fluctuation stability |
| Railway Systems | 15–25 kV | Traction power supply | High fault interruption capacity |
| EPC Projects | 6–36 kV | Turnkey substation delivery | Fast installation efficiency |
Medium Voltage (MV) Switchgear operates between 1 kV and 36 kV. It is used for protecting, controlling, or isolating electrical power distribution networks.
Working Principle and Internal Structure of a Vacuum Circuit Breaker
Arc extinguishing occurs inside a sealed vacuum interrupter. When the contacts separate, metal vapor produced by the current rapidly condenses back into solid or liquid form inside the vacuum chamber, ensuring reliable operation.Key components of a VCB include the vacuum interrupter chamber, the operating mechanism (spring or magnetic type), the insulated pole assembly, and the control circuit system.
Read More: How Does a Vacuum Circuit Breaker Work? – FUERTE
Technical Specifications and Configuration Options for B2B Buyers
| Parameter | Standard Range | Engineering Meaning | Practical Impact |
|---|---|---|---|
| Rated Voltage | 3.3–36 kV | System operating level | Defines insulation design |
| Rated Current | 630–3150 A | Load capacity | Impacts conductor sizing |
| Breaking Capacity | 25–50 kA | Fault interruption ability | Determines safety margin |
| Mechanical Life | 10,000–30,000 cycles | Operational durability | Maintenance planning |
| Control Voltage | 110–220 V AC/DC | Coil operation system | Control compatibility |
The primary standard for this equipment is IEC 62271-100. Reference the official publication for full compliance details: webstore.iec.ch/publication/261
Breaking capacity is the maximum short circuit current that a circuit breaker can safely interrupt without sustaining damage or experiencing operational failure.

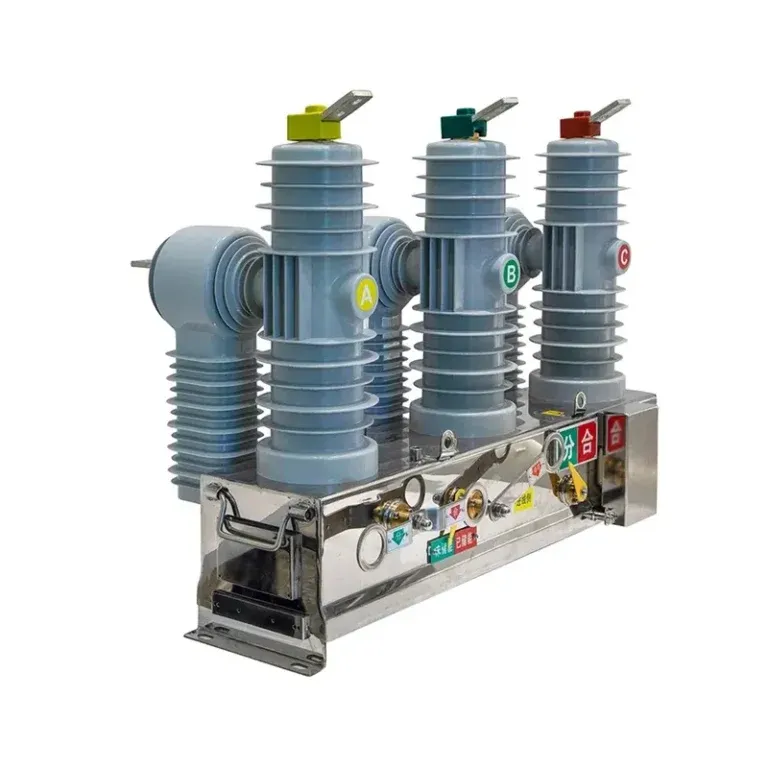

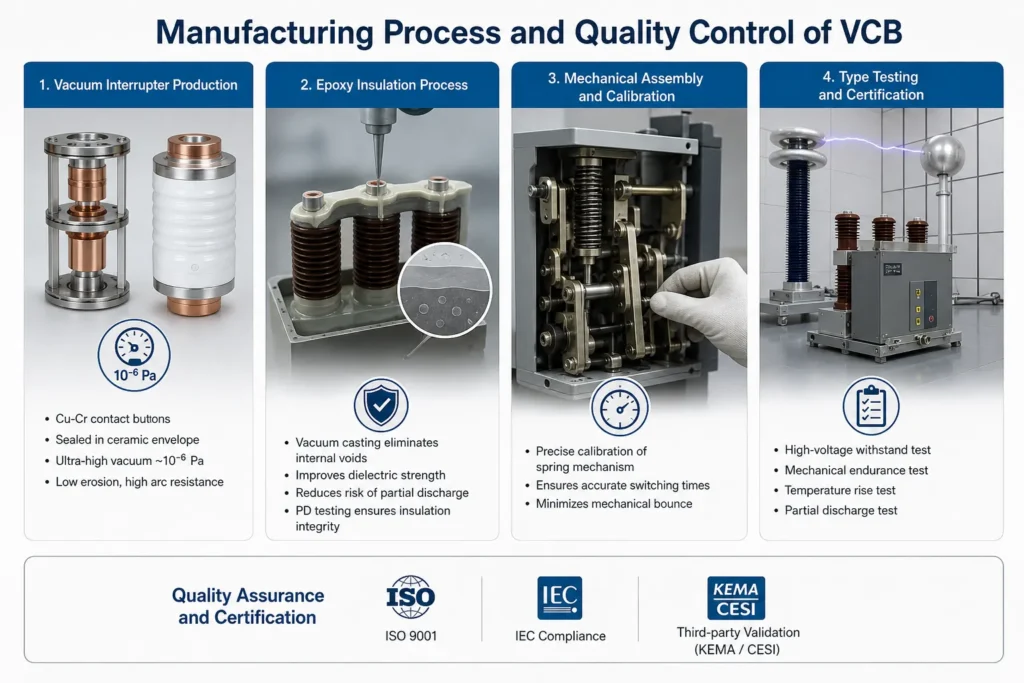

Manufacturing Process and Quality Control of Vacuum Circuit Breakers
Reliable operation of a VCB depends heavily on manufacturing accuracy and the integrity of the insulation system.
Vacuum Interrupter Production
Copper-chromium (Cu-Cr) contact buttons are sealed inside ceramic envelopes under ultra-high vacuum conditions of approximately 10⁻⁶ Pa. Cu-Cr offers low erosion rates and high resistance to arcing.
Epoxy Insulation Process
Vacuum casting is used to eliminate internal voids in the insulation, which significantly improves dielectric strength consistency and reduces the risk of partial discharge.
Partial discharge testing identifies localized electrical discharges that indicate potential insulation degradation.
Mechanical Assembly and Calibration
Precise calibration of the spring mechanism ensures accurate switching times and minimizes mechanical bounce during operation.
Type Testing and Certification
Standard compliance testing includes high-voltage withstand tests, mechanical endurance tests, temperature rise tests, and partial discharge testing. Key certifications include ISO 9001, IEC compliance verification, and third-party validation by KEMA or CESI.
Installation Procedure for Electrical Contractors
A structured installation process is critical for long-term VCB reliability. The standard sequence includes pre-installation inspection, mechanical alignment, control wiring integration, functional testing, and commissioning sequence validation.
1. Pre-Installation Inspection
Before installation, contractors should check the equipment condition and site readiness.
This includes verifying nameplate ratings, checking for transport damage, and testing insulation resistance to ensure the breaker is safe for installation.
2. Mechanical Installation and Alignment
The breaker is installed into the switchgear panel and mechanically fixed.
Proper alignment with busbars and correct torque tightening are important to avoid stress on contacts and ensure smooth operation.
3. Control Wiring Integration
This step connects the breaker to the control system.
It includes wiring of closing/tripping coils, auxiliary contacts, and protection relays to ensure correct electrical operation and signal feedback.
4. Functional Testing
Before energization, the breaker is tested in a no-load condition.
Engineers check opening/closing operation, spring charging, interlocks, and signal response to confirm proper functionality.
5. Commissioning Sequence Validation
The system is gradually energized step by step.
Testing starts from no-load to full-load operation to ensure stability, correct relay coordination, and safe performance under real conditions.
Interlock systems are safety devices designed to prevent operators from switching the power supply on or off when the sequence is incorrect.
Real Engineering Case: Fuerte Application Example
In a 33 kV EPC substation project located in Southeast Asia, Zhejiang Fuerte Electrical Apparatus Co., Ltd. supplied OEM vacuum circuit breakers for an electric power grid expansion.
During commissioning, intermittent tripping occurred due to incompatible relay settings with the breaker control voltage. Fuerte provided remote technical guidance and modified the auxiliary contact configuration to resolve the issue.
Project Results
Commissioning time was reduced by approximately 28%. System stability improved significantly under load fluctuation. The final IEC-based acceptance was passed without requiring any hardware redesign.
Troubleshooting and Failure Analysis
Common field issues include coil undervoltage failure, mechanical misalignment, insulation degradation, and relay coordination mismatch. Most of these problems stem from installation and configuration practices, not from inherent product defects.
Industry data indicates that 40-60% of commissioning problems originate from installation errors. Insulation Resistance Testing is a key diagnostic tool for identifying leakage currents under DC voltage.
Field Failure Modes
| Failure Mode | Root Cause | Impact | Frequency |
|---|---|---|---|
| Coil burnout | Voltage instability | Closing failure | High |
| Contact overheating | Loose torque | Thermal aging | Medium |
| Mis-tripping | Relay mismatch | System shutdown | High |
| Insulation failure | Humidity ingress | Safety risk | Medium |
| Mechanical bounce | Spring miscalibration | Wear increase | Medium |
Installation Impact on Lifecycle
| Issue | Lifespan Impact | Performance Effect |
|---|---|---|
| Improper torque | -15% to -25% | Contact wear increase |
| Misalignment | Mechanical stress increase | Vibration rise |
| Relay mismatch | Instability | False tripping |
| Poor grounding | Insulation risk | Safety hazard |
Procurement Risk Analysis
| Risk Type | Description | Impact |
|---|---|---|
| Documentation gap | Missing commissioning guidance | Delay |
| OEM mismatch | Control incompatibility | Failure |
| Spare delay | Long lead time | Downtime cost |
| Testing inconsistency | Non-standard reports | Certification risk |
Maintenance Strategy and Lifecycle Management
Effective maintenance programs include insulation resistance testing, mechanical cycle inspection, and contact wear monitoring. Many operators are transitioning to Condition-Based Maintenance (CBM), which relies on real-time equipment data rather than fixed time schedules.
OEM Procurement Considerations
When selecting a VCB supplier, buyers should prioritize IEC and ISO compliance, manufacturing traceability, OEM customization capability, spare parts availability, and the completeness of technical documentation. Zhejiang Fuerte Electrical App. Corp. supports OEMs and EPC contractors in over 60 countries with comprehensive vacuum circuit breaker and MV switchgear solutions.
Industry Outlook and Smart Grid Integration
Key trends shaping the future of VCBs include the development of digital substations, the integration of IoT-based monitoring systems, enhanced predictive fault detection algorithms, and the expansion of smart grid automation.
Frequently Asked Questions
What is a vacuum circuit breaker?
A vacuum circuit breaker is a medium-voltage switching device that interrupts electrical faults by separating contacts inside a sealed vacuum chamber. The arc extinguishes almost instantly because there is no medium available to sustain it.
Where are VCBs commonly used in real projects?
They are widely deployed in power distribution substations, industrial manufacturing plants, solar and wind energy facilities, railway traction systems, and large-scale EPC substation projects.
Why do engineers prefer VCBs over SF6 or oil circuit breakers?
VCBs are more environmentally friendly, require significantly less maintenance, and offer a longer operational lifespan. They do not contain greenhouse gases such as SF6, which are increasingly regulated or banned in many countries.
What voltage range do vacuum circuit breakers cover?
Standard medium voltage VCBs are designed for applications between 3.3 kV and 36 kV, which covers the vast majority of industrial and utility distribution requirements.
What are the most common installation mistakes?
The most frequent issues include incorrect control wiring, inadequate grounding, loose mechanical connections, and mismatched protection relay settings relative to the breaker control circuitry.
How long does a VCB installation typically take?
A qualified electrical contractor can typically complete a standard switchgear installation within a few hours. Full commissioning may take longer depending on the complexity of the system and the required testing protocols.
What maintenance does a VCB require?
Periodic insulation resistance testing, mechanical operation verification, and contact wear inspection are standard. Condition-based monitoring is highly recommended for critical applications.
What is the expected lifespan of a VCB in real operation?
Under normal operating conditions, a vacuum circuit breaker can last between 20 and 30 years, depending on the frequency of switching operations, environmental factors, and the quality of maintenance.
What standards apply to vacuum circuit breakers?
The primary international standard is IEC 62271-100. In certain regions, IEEE C37 standards also define the design, testing, and performance criteria for this equipment.
