YH5(10)W-12 / YH5(10)W-12J Surge Arrester

YH5(10)W-12 / YH5(10)W-12J Surge Arrester

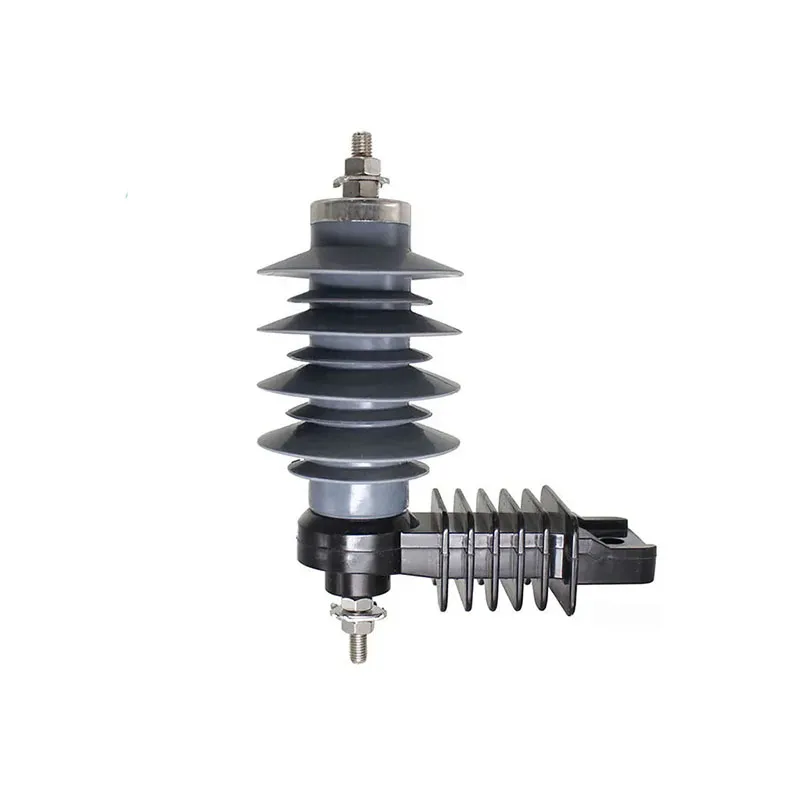

The surge arrester is assembled above overhead distribution transformers, where they shunt the energy from overvoltage events (especially lightning effects) to a ground connection and protect the equipment against damage in system.
Characteristic:
Voltage: 12kV
Current: 5kA / 10kA
Application: Overhead Distribution Line
Standard: IEC60099-4

Request a Quote

Overview

Metal oxide surge arrester

YH5(10)W-12 / YH5(10)W-12J Surge Arrester for Distribution Overvoltage Protection

The supplier table identifies YH5(10)W-12 / YH5(10)W-12J as a 12 kV, 50 Hz, gapless Design B distribution-type surge arrester with 5 / 10 kA nominal discharge-current options and 10.2 kV maximum continuous operating voltage.

Rated voltage: 12 kV
Nominal discharge current: 5 / 10 kA
MCOV: 10.2 kV
Published standard: IEC60099-4:2014

The source lists IEC60099-4:2014. Confirm the required standard edition, arrester class and project acceptance documents before ordering.

Request a configuration review Browse lightning arresters

Published technical data

YH5(10)W-12 / YH5(10)W-12J Technical Parameters

Review the published electrical characteristics together with the selectable accessories, material options, package information and service conditions.

Parameter	Published value	Unit
Rated voltage of Surge arrreser	12	kV
Nominal discharge current	5 / 10	kA
Rated frequency	50	Hz
Maximum continuous operating voltage	10.2	kV
Steep current impulse residual voltage	42.2	kV(Crest)
Lightning Impulse residual voltage	36	kV(Crest)
Switching Impulse residual voltage	31.7	kV(Crest)
Long duration current impulse withstand voltage	150 / 250	A
High current impulses	65 / 100	kA (Crest)
Rated Short-circuit current	20 / 12 / 6 / 0.6 ± 0.2	kA
Class of Surge arrester	Class 1 or Class 2
Application	Distribution type
With or without gap	Gapless
Designation of arrester	Design B
Spare parts
NEMA A or B mounting bracket	with/without
Disconnector	with/without
Earth lead	with/without
Bird guard cap	with/without
Line clamp	with/without
Upper terminal (incoming line) bolt size	M12
Lower termina (outgoing line) bolt size	M10
Material
Upper terminal	Stainless steel 304
Housing	Polymer type
Color of housing	Dark grey / light grey
Varistor	High quality zinc oxide varistor
Size of Varistor	35mm / 38mm /40mm / 42mm
Package
Qty/package	3	pc/carton
Service conditions
Environment maximum temperature	40	℃
Pollution level	Heavy
Altitude	1000	Meter
Standard	IEC60099-4:2014

Confirm the selected rating against the system voltage, earthing arrangement, insulation coordination, installation altitude and pollution conditions.

Selection checklist

Prepare the Surge Arrester RFQ

State the system and arrester voltage. Include the nominal system voltage, arrester rated voltage and MCOV.
Confirm discharge duty. Specify nominal discharge current, required residual-voltage limits and the project duty cycle.
Define installation conditions. Include altitude, pollution level, maximum ambient temperature and mounting position.
Select hardware and accessories. Confirm brackets, line clamps, earth leads, disconnectors, bird guards, counters or monitors.
List document requirements. State the applicable standard edition, drawings, test evidence and acceptance documents required by the project.

Configuration and supply boundary

Review the YH5(10)W-12 / YH5(10)W-12J Configuration

The supplier table lists a polymer housing, Grade 304 stainless steel upper terminal and zinc oxide varistor options sized 35mm / 38mm /40mm / 42mm.

Electrical coordination

Confirm rated voltage, MCOV, nominal discharge current and residual-voltage limits against the project study.

Mounting hardware

State bracket pattern, terminal connection, line clamp and earth-lead requirements in the inquiry.

Failure indication

Confirm whether the supply should include a disconnector, insulating base, counter or monitor.

Commercial boundary

Quantity, packing, delivery schedule, test documents and destination requirements depend on quotation.

Company scale

Fuerte at a Glance

FUERTE lists 1985 as its founding year, 220+ employees and a 36,000 m² built-up area. These supplier-published figures provide context for manufacturing and project support.

1985

Founded in

Supplier-published company history

220+

Employees

Published workforce scale

36,000 m²

Built-up area

Published manufacturing footprint

OEM

& ODM support

Subject to technical review

OEM & ODM capability

Custom Support for Arrester Projects

FUERTE’s published OEM and ODM scope includes voltage/current adaptation, mounting hardware, nameplates, packaging and shipping marks.

Electrical configurationReview rated voltage, MCOV, discharge current, residual voltage and service conditions.
Hardware selectionConfirm brackets, terminals, disconnectors, bird guards, counters and monitors.
Project documentationState drawing, marking, packing and acceptance-document requirements before quotation.

Frequently asked questions

YH5(10)W-12 / YH5(10)W-12J Surge Arrester FAQ

What rated voltage and MCOV are published for YH5(10)W-12 / YH5(10)W-12J?

The table lists 12 kV rated voltage and 10.2 kV maximum continuous operating voltage.

What residual-voltage values are shown?

The published steep-current, lightning-impulse and switching-impulse residual voltages are 42.2 kV, 36 kV and 31.7 kV crest respectively.

Is the arrester gapped or gapless?

The source identifies the product as a gapless, Design B, distribution-type arrester.

What should the RFQ include?

State the system voltage, MCOV, nominal discharge current, residual-voltage limits, short-circuit requirement, mounting hardware, disconnector, terminal sizes, quantity and destination market.

Configuration review

Send the YH5(10)W-12 / YH5(10)W-12J Requirements

Provide system voltage, arrester rated voltage, MCOV, nominal discharge current, residual-voltage limits, mounting and accessory requirements, quantity, destination market and required documents.
