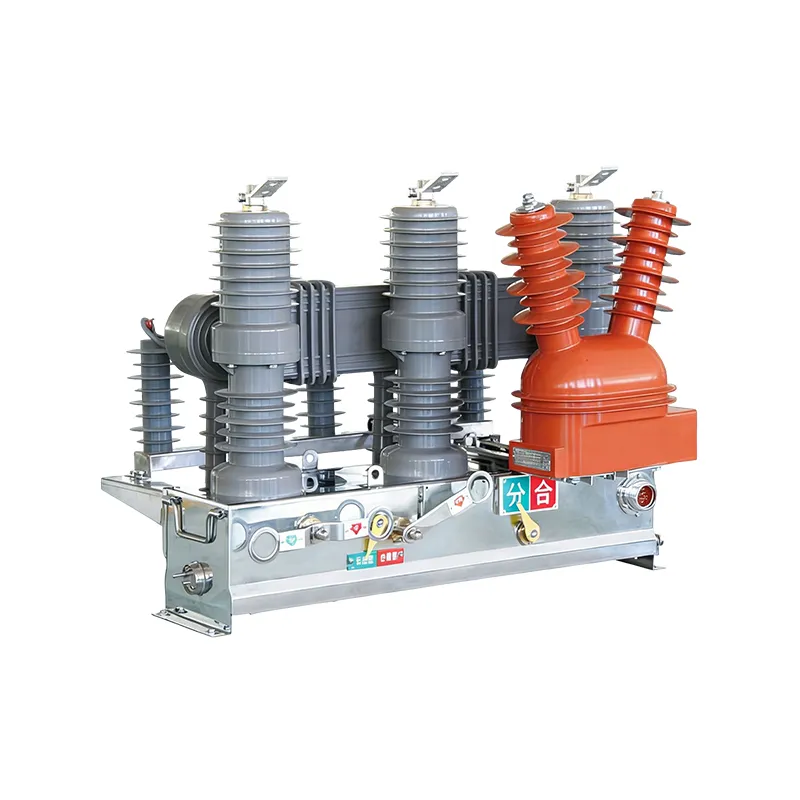

Column Vacuum Circuit Breaker

ZW32-12 series outdoor column vacuum circuit breaker (hereinafter referred to as circuit breaker) is distribution equipment of three-phase alternative current 50Hz which voltage rated at 12kV,it's mainly used for breaking and making load current, overload current, and short-circuit current in power system.It's suitable for use as protection and control in urban and rural power network, more suitable for places where are frequently operated.

Request a Quote

Overview

Vacuum circuit breaker

Column Vacuum Circuit Breaker for Medium-Voltage Switching

Column Vacuum Circuit Breaker is presented for medium-voltage switching and protection projects. The authenticated supplier source provides product-specific construction notes and technical rows where published; use the exact model and installation duty for final selection.

Product family: Vacuum switching
Installation duty: Medium voltage
Model reference: Column
Final rating: Confirm by drawing

The page keeps the supplier’s model identity and source tables where available. Confirm the applicable IEC/GB standard, rated voltage, current, breaking capacity and project acceptance documents before ordering.

Request a configuration review Browse vacuum circuit breakers

Published technical data

Column Vacuum Circuit Breaker Technical Parameters

Use the source data below as the starting point for engineering review. Keep voltage class, continuous current, short-circuit duty, operating mechanism and installation environment together when selecting a breaker.

Published source table 1

Rated voltage	kV	12
1 min rated power-frequency withstand voltage	kV	Phase to phase:42 Phase to ground:42 Fracture:48
Rated lightning impulse withstand voltage (peak value)	kV	Phase to phase:75 Phase to ground:75 Fracture:85
Rated current	A	630
Rated frequency	Hz	50
Rated short-circuit breaking current	KA	12.5 16 20
Rated short-circuit making current(peak value)	kA	31.5 40 50
Rated peak withstand current	kA	31.5 40 50
4s rated short-circuit withstand current	KA	12.5 16 20
Rated operation sequence		open-0.3s-close open-180s-close open
Closing time	ms	25~60
Opening time	ms	20~55
Rated short-circult breaking current breaking times	times	30
Mechanical life	times	10000
Second-time circuit 1 min power-frequency withstand voltage	V	2000
Rated power of energy storoge motor	W	40
Rated voltage of energy storage motor	V	DC220, 110
Rated closing operation voltage	V	DC220, 110 AC220
Rated opening operation voltage	V	DC220, 110 AC220
Motor energy storage time	s	≤8

Published source table 2

Contact travel	mm	9±1
Contact ultra travel	mm	2±0.5
Central distance of interphase	mm	340±1.5
Contact bouncing time on closing	ms	≤ 2
Three-phase non-synchronous opening and closing	ms	≤2
Average opening speed	m/s	1.2±0.2
Average closing speed	m/s	0.6±0.2
Conductive circuit resistance on each phase	μΩ	≤ 80

Values shown are transcribed from the target listing where the authenticated source publishes them. Confirm the exact model row, unit, test condition and revision before using any value in a purchase specification.

Selection checklist

Specify the Vacuum Circuit Breaker for the Network

Define the electrical duty. State rated voltage, continuous current, frequency, short-circuit breaking current, making current and insulation levels.
Choose the construction. Confirm outdoor or indoor installation, common-box or pole-mounted arrangement, vacuum interrupter and insulation medium.
Match the operating mechanism. Specify manual, motor or stored-energy operation, trip/close coil voltage, auxiliary contacts and control interface.
Check the site environment. Provide altitude, ambient temperature, humidity, pollution, wind, seismic and enclosure requirements.
List documents and quantity. Include drawings, wiring diagram, routine-test evidence, packing, destination market and delivery requirements in the RFQ.

Configuration and supply boundary

Review the Column Configuration

The supplier listing identifies a vacuum-circuit-breaker model family. State the exact model code and switching arrangement so the quotation does not mix ratings or accessories from another series.

Electrical parameters

Confirm rated voltage, current, frequency, short-circuit duty, insulation levels and operating sequence.

Mechanism and controls

Specify stored-energy mechanism, motor and coil voltages, auxiliary contacts, interlocks and local/remote control.

Structure and environment

Confirm pole arrangement, insulation housing, enclosure, altitude, temperature, pollution and installation interface.

Commercial boundary

Quantity, packing, delivery schedule, private label and project documents remain subject to technical review and quotation.
