HFSC Polymer Type Standard, Linkbreak And Loadbreak Fuse Cutout

Request a Quote

Overview

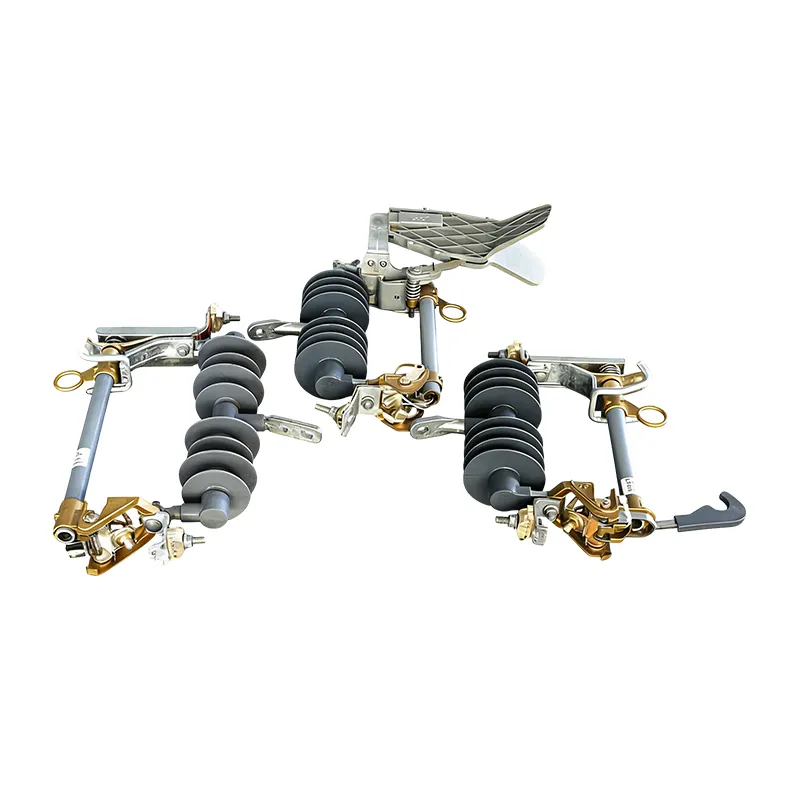

HFSC polymer fuse cutout family

HFSC Polymer Type Standard, Linkbreak And Loadbreak Fuse Cutout for Medium-Voltage Overhead Distribution

The supplier table covers polymer-type drop out fuse cutouts for 10~15 kV, 15~27 kV, 24~27 kV and 33~36 kV applications, with 100 A and 200 A fuse-current options and a 300 A maximum rated current of base.

Use the family table to shortlist voltage class, fuse current and interrupting duty. The source states that the HFSC-( )F suffix is for polymer type loadbreak fuse cutouts and HFSC-( )L is for polymer type linkbreak fuse cutouts.

Voltage classes: 10~15 to 33~36 kV
Fuse current: 100 / 200 A
Base current: 300 A max.
Insulator: Polymer type

This source is a family comparison table and does not show a separate standard field. Confirm the applicable standard, fuse-link construction and project acceptance documents before ordering.

Request a configuration review Browse fuse cutouts

Family technical comparison

HFSC Polymer Fuse Cutout Technical Parameters

These values reproduce the target product’s original WordPress family table. Breaking-current entries are shown against the 100 A and 200 A fuse-current options where the source provides separate values.

Model	Rated voltage (kV)	Rated current (A)	Max base current (A)	Breaking current (kA)	Impulse withstand	Power-frequency withstand (kV)	Leakage distance (mm)
HFSC-1	10~15	100 / 200	300	10 (100 A) / 12 (200 A)	110 BIL	40	320
HFSC-2	10~15	100 / 200	300	10 (100 A) / 12 (200 A)	110 BIL	40	349
HFSC-12	15~27	100 / 200	300	8 (100 A) / 12 (200 A)	125 BIL	45	430
HFSC-15	15~27	100 / 200	300	8 (100 A) / 12 (200 A)	125 BIL	45	539
HFSC-18	24~27	100 / 200	300	8 (100 A) / 12 (200 A)	150 BIL	65	620
HFSC-21	33~36	100 / 200	300	6 (100 A) / 8 (200 A)	190 BIL	75	1080

Confirm the selected model’s published leakage distance against the project installation environment.

Selection checklist

Prepare the HFSC Family RFQ

Choose the voltage class. Match the project system to the voltage class shown in the table.
State fuse current and duty. Confirm 100 A or 200 A and the corresponding breaking-current entry.
Specify the suffix. Confirm standard, polymer loadbreak (F suffix) or polymer linkbreak (L suffix).
Check insulation and leakage distance. Include impulse withstand, power-frequency withstand and leakage distance.
Confirm supply boundary. State fuse-link arrangement, accessories, packaging, quantity and destination market.

Configuration and supply boundary

Review the HFSC Polymer Configuration

Loadbreak and linkbreak suffixes

The source notes HFSC-( )F for polymer type loadbreak and HFSC-( )L for polymer type linkbreak. Confirm the suffix before quotation.

Fuse-link and accessories

The family table does not specify a complete accessory set or fuse-link supply boundary. List the required link and hardware in the RFQ.

Polymer insulation

This page is labelled as the polymer-type family. Confirm housing, terminal materials, pollution level and service temperature.

Documents and acceptance

Confirm the required standard edition, drawings and project acceptance documents before ordering.

Company scale

Fuerte at a Glance

FUERTE lists 1985 as its founding year, 220+ employees and a 36,000 m² built-up area. These supplier-published figures provide context for manufacturing and project support.

1985

Founded in

Decades of manufacturing history

220+

Employees

Skilled staff and experienced engineers

36k m²

Built-up area

Supplier-published manufacturing footprint

OEM

& ODM support

Customization subject to project review

OEM & ODM capability

Custom Support for Global Markets

FUERTE’s published OEM and ODM scope includes voltage/current adaptation, mounting hardware, nameplates, packaging and shipping marks. The company also states that it develops customized solutions from technical drawings, market standards and project requirements.

Comprehensive customizationPrivate label, specification adjustment, sample development and mass production.
International experienceFUERTE states it has delivered 100+ customized designs to multiple markets.
Cross-category supportAdaptations are listed for fuse cutouts, lightning arresters, isolating switches and related fittings.

Frequently asked questions

HFSC Polymer Fuse Cutout FAQ

Which HFSC voltage classes are published?

The family table lists 10~15 kV, 15~27 kV, 24~27 kV and 33~36 kV classes.

What fuse currents are shown?

The source shows 100 A and 200 A fuse-current options with a 300 A maximum rated current of base.

What do the F and L suffixes mean?

HFSC-( )F is polymer type loadbreak and HFSC-( )L is polymer type linkbreak. Confirm the requested suffix.

What must be confirmed before quotation?

Confirm model, fuse current, breaking duty, leakage distance, suffix, fuse-link arrangement, accessories, standard and destination market.
