FPQ24-13 Polymer Insulator

Polymer insulator has pin, post and suspension type rated from 10kV to 36kV, which housed by silicone rubber has good property such as water-proof, anti-ageing,
tracking-proof, anti-corrosion, anti-impulse, shaking-proof, high strength, light weight,easy installation etc.It guarantees electrical insulation and mechanical mounting for overhead distribution and transmission line.
Technical Standard: IEC61109, IEC61952, ANSI C29 latest standard.

Request a Quote

Overview

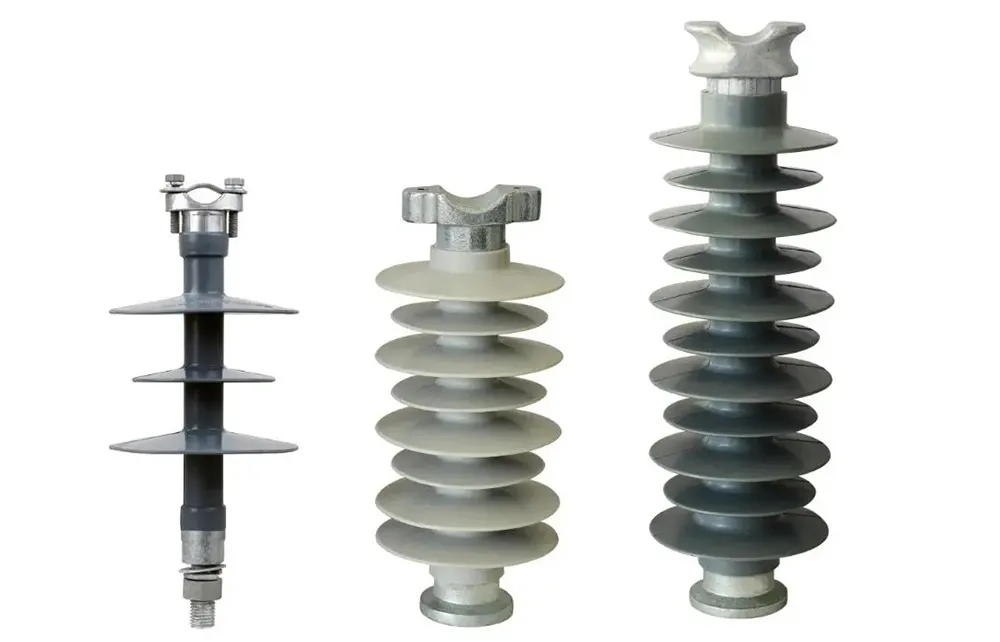

Pin Type Insulator

Model	Rated Voltage	Rated Mecha nical Bending Load	Stucture Height	Creepage distance	Lightning Impulse withstand Voltage	Power-frequency withstand Voltage （wet）
	kV	kN	mm	mm	kV	kV
FPQ3-10/4T20	10~15	4	326	460	95	42
FPQ3-24/5T22	24~27	5	403	700	150	65
FPQ2-24/13T20	24~27	13	298	760	170	80
FPQ2-36/8T22	33~36	8	403	1080	210	110

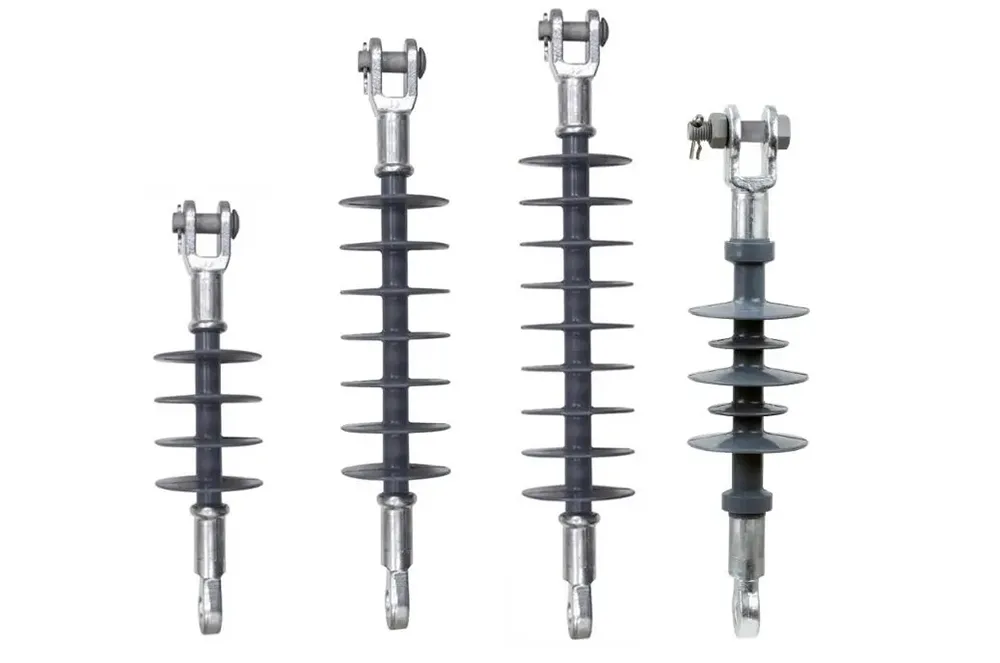

Suspension Type Insulator

Model	Rated Voltage	Rated Mechanical Bending Load	Stucture Height	Creepage distance	Lightning Impulse withstand Voltage	Power-frequency withstand Voltage （wet）
	kV	kN	mm	mm	kV	kV
FZSW1-15	15	10	178	400	110	42
FZSW1-27	27	8	209	530	150	65
FZSW1-36	36	6	273	750	170	75
FZSW2-36/4	36	4	397	1080	200	95

Post type insulator

Model	Rated Voltage	Rated Mechanical Bending Load	Stucture Height	Creepage distance	Lightning Impulse withstand Voltage	Power-frequency withstand Voltage （wet）
	kV	kN	mm	mm	kV	kV
FZSW1-15	15	10	178	400	110	42
FZSW1-27	27	8	209	530	150	65
FZSW1-36	36	6	273	750	170	75
FZSW2-36/4	36	4	397	1080	200	95
